XGQT07S Concentric Reducer (Threaded)

XGQT07S - Concentric Reducer (Threaded)

Product Description

Product Certification
UL Listed / FM Approved (EX 26523)

Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16

Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8

Finishing
Epoxy Red Paint RAL – 3000/3001

Branch Outlets
Threaded Branch Outlets as per BSPT ISO 7-1

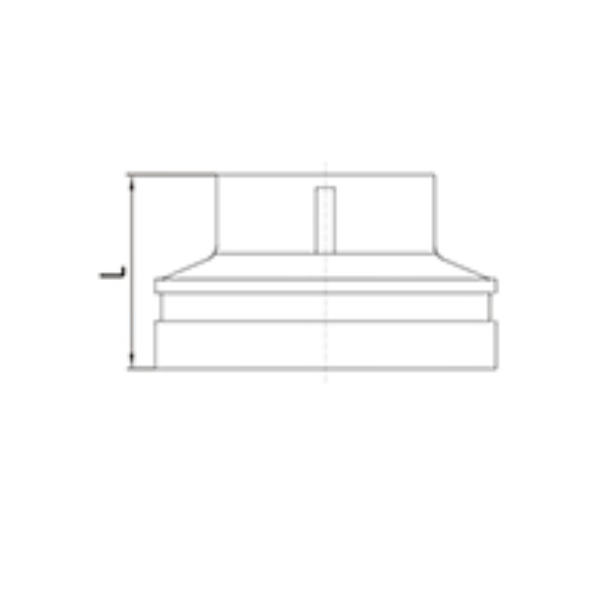

Dimensions (in mm)

Nominal Size Nominal Size (Inch) Pipe O.D. L
50×25 2×1 60.3×33.7 64
50×32 2×1.1/4 60.3×42.4 64
50×40 2×1.1/2 60.3×48.3 64
65×25 2.1/2×1 76.1×33.7 64
65×32 2.1/2×1.1/4 76.1×42.4 64
65×40 2.1/2×1.1/2 76.1×48.3 64
65×50 2.1/2×2 76.1×60.3 64
80×25 3×1 88.9×33.7 64
80×32 3×1.1/4 88.9×42.4 64
80×40 3×1.1/2 88.9×48.3 64
80×50 3×2 88.9×60.3 64
80×65 3×2.1/2 88.9×76.1 64
100×25 4×1 114.3×33.7 76
100×32 4×1.1/4 114.3×42.4 76
100×40 4×1.1/2 114.3×48.3 76
100×50 4×2 114.3×60.3 76
100×65 4×2.2/1 114.3×76.1 76
100×80 4×3 114.3×88.9 76
125×25 5×1 139.7×33.7 102
125×32 5×1.1/4 139.7×42.4 102
125×40 5×1.1/2 139.7×48.3 102
125×50 5×2 139.7×60.3 102
125×65 5×2.1/2 139.7×76.1 102
125×80 5×3 139.7×88.9 102
125×100 5×4 139.7×114.3 102
150×25 6×1 165.1×33.7 102
150×32 6×1.1/4 165.1×42.4 102
150×40 60×1.1/2 165.1×48.3 102
150×50 6×2 165.1×60.3 102
150×65 6×2.1/2 165.1×76.1 102
150×80 6×3 165.1×88.9 102
150×100 6×4 165.1×114.3 102
200×25 8×1 219.1×33.7 127
200×32 8×1.1/4 219.1×42.4 127
200×40 8×1.1/2 219.1×48.3 127
200×50 8×2 219.1×60.3 127
200×65 8×2.1/2 219.1×76.1 127
200×80 8×3 219.1×88.9 127
200×100 8×4 219.1×114.3 127
