XGQT17 Eccentric Reducer (Grooved)

XGQT17 - Eccentric Reducer (Grooved)

Product Description

Product Certification
UL Listed / FM Approved (EX 26523)

Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16

Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8

Finishing
Epoxy Red Paint RAL – 3000/3001

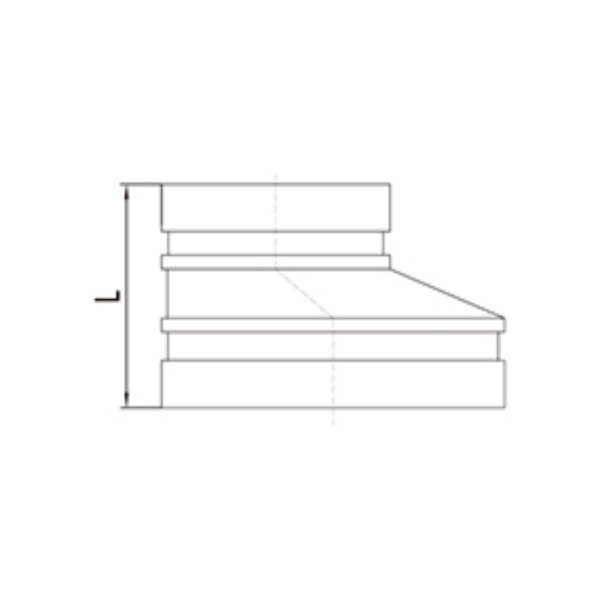

Dimensions (in mm)

Nominal Size Nominal Size (Inch) Pipe O.D. L
100×65 4×2.2/1 114.3×76.1 102
100×80 4×3 114.3×88.9 102
125×80 5×3 139.7×88.9 102
125×100 5×4 139.7×114.3 102
150×65 6×2.1/2 165.1×76.1 102
150×80 6×3 165.1×88.9 102
150×100 6×4 165.1×114.3 102
150×125 6×5 165.1×139.7 102
200×80 8×3 219.1×88.9 130
200×100 8×4 219.1×114.3 130
200×125 8×5 219.1×139.7 130
200×150 8×6 219.1×165.1 130
