Product Certification
UL Listed / FM Approved (EX 26523)
Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12
Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16
Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8
Finishing
Epoxy Red Paint RAL – 3000/3001
| Nominal Size | Nominal Size (Inch) | Pipe O.D. | Do | H1 | H2 | ∅ | Bolt Size (No. – Size) |
|---|---|---|---|---|---|---|---|
| 50 | 2 | 60.3 | 125 | 16 | 60 | 160 | 4xM16 |
| 65 | 2.1/2 | 76.1 | 145 | 16 | 60 | 180 | 4xM16 |
| 80 | 3 | 88.9 | 160 | 17 | 60 | 195 | 8xM16 |
| 100 | 4 | 114.3 | 180 | 17 | 60 | 215 | 8xM16 |
| 125 | 5 | 139.7 | 210 | 19 | 65 | 245 | 8xM16 |
| 150 | 6 | 165.1 | 240 | 20 | 65 | 280 | 8xM20 |
| 200 | 8 | 219.1 | 295 | 20 | 75 | 330 | 12xM20 |
| 250 | 10 | 273.0 | 295 | 25 | 85 | 400 | 12xM20 |
| 300 | 12 | 323.9 | 410 | 25 | 90 | 460 | 12xM24 |
XGQT1
Rigid Coupling
XGQT2
Flexible Coupling
XGQT01
90° Elbow
XGQT02
45° Elbow
XGQT021
22.5° Elbow
XGQT022
11.25° Elbow
XGQT03
Equal Tee
XGQT05
Equal Cross
XGQT04
Reducing Tee (Grooved)
XGQT04S
Reducing Tee (Threaded)
XGQT051
Reducing Cross (Grooved)
XGQT3
Mechanical Tee (Grooved)
XGQT3S
Mechanical Tee (Threaded)
XGQT3U
U-Bolted Mechanical Tee (Threaded)
XGQT08

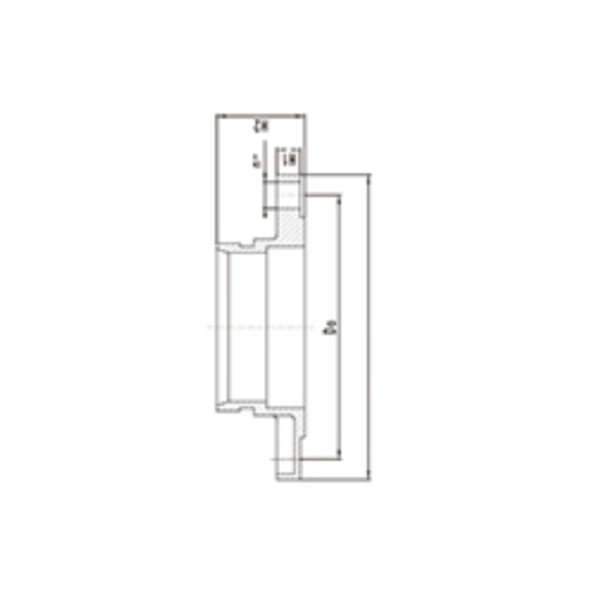

Flange Adaptor PN16
XGQT18
Grooved Flange PN16
XGQT07
Concentric Reducer (Grooved)
XGQT07S
Concentric Reducer (Threaded)
XGQT17
Eccentric Reducer (Grooved)
XGQT06
Cap
-
Cap with Eccentric Hole
