XGQT02 45° Elbow

XGQT02 - 45° Elbow

Product Description

Product Certification
UL Listed / FM Approved (EX 26523)

Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16

Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8

Finishing
Epoxy Red Paint RAL – 3000/3001

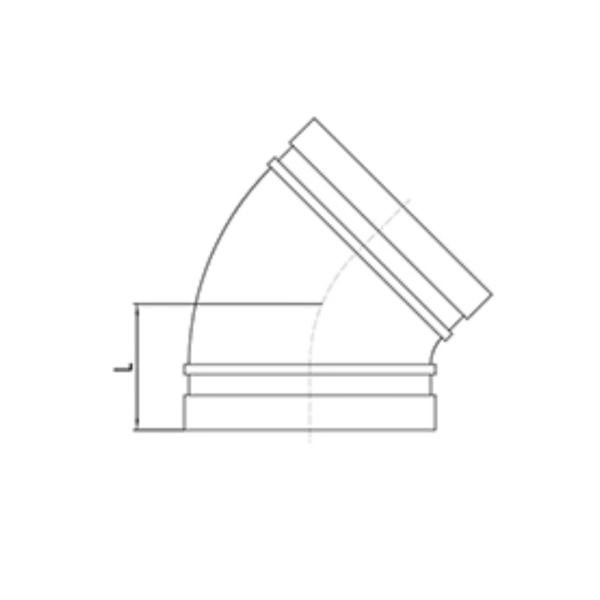

Dimensions (in mm)

Nominal Size Nominal Size (Inch) Pipe O.D. L
25 1 33.7 38
32 1.1/4 42.4 44
40 1.1/2 48.3 44
50 2 60.3 51
65 2.1/2 76.1 57
80 3 88.9 64
100 4 114.3 76
125 5 139.7 83
150 6 165.1 89
200 8 219.1 95
250 10 273.0 121
300 12 323.9 133
