Product Certification
UL Listed / FM Approved (EX 6624)
Material
ASTM A536
Threads
ASME B1.20.1
Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa

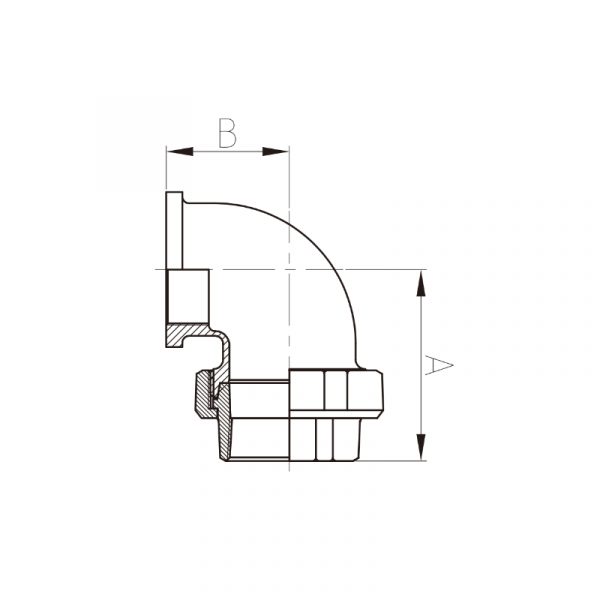

| Inch | mm | A | B |
|---|---|---|---|
| 1/2 | 15 | 57 | 27 |
| 3/4 | 20 | 59 | 29 |
| 1 | 25 | 72 | 34 |
| 1.1/4 | 32 | 82 | 43 |
| 1.1/2 | 40 | 88 | 47 |
| 2 | 50 | 99 | 56 |
90
Elbow 90°
90R
Reducing Elbow 90°
96A
Union Elbow, F/F, Conical Joint
120
Elbow 45°
130
Tee
130R
Reducing Tee
130R
Reducing Tee
130R
Reducing Tee
130R
Reducing Tee
130R
Reducing Tee
180
Cross
180R
Reducing Cross
220
Coupling
1220
Coupling, Plain with Ribs
240
Reducing Coupling
241
Outside Hex Bushing
241N
Inside Hex Bushing
291
Plug
300
Cap
342
Union, Conical Joints, Brass to Iron Set
