130R Reducing Tee

130R - Reducing Tee

Product Description

Product Certification
UL Listed / FM Approved (EX 6624)

Material
ASTM A536

Threads
ASME B1.20.1

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa

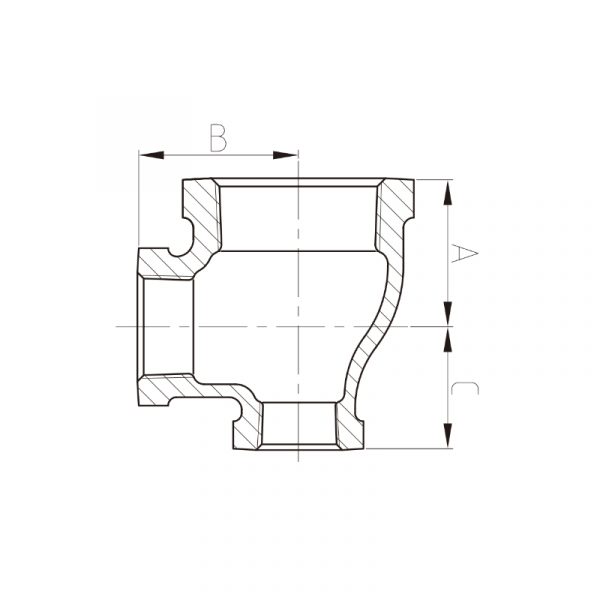

Dimensions (in mm)

Inch mm A B C
1.1/2x1x1/2 32x25x15 34 38.9 32
1.1/4x1x3/4 32x25x20 36.8 41.2 34.8
1.1/4x1x1.1/2 32x25x40 48 46 46
1.1/2x1x1/2 40x25x15 35.8 42.2 34
1.1/2x1x3/4 40x25x20 38.6 44.5 34.8
1.1/2x1x1.1/4 40x25x32 46.2 47.8 42.4
1.1/2×1.1/4×1/2 40x32x15 35.8 42.2 34
1.1/2×1.1/4×3/4 40x32x20 38.6 44.5 36.3
1.1/2×1.1/4×1 40x32x25 41.9 45.7 40.1
1.1/2×1.1/4×2 40x32x50 54.9 51.3 53.3
2x1x1.1/2 50x25x40 51.3 54.9 45.7
2×1.1/4×1 50x32x25 44 51 40
2×1.1/2×1/2 50x40x15 37.9 47.8 35.8
2×1.1/2xx3/4 50x40x20 40.5 50 38.5
2×1.1/2×1 50x40x25 43.9 51.3 41.9
2×1.1/2×1.1/4 50x40x32 48.3 53.3 46.2
