Product Certification
UL Listed / FM Approved (EX 6624)
Material
ASTM A536
Threads
ASME B1.20.1
Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa

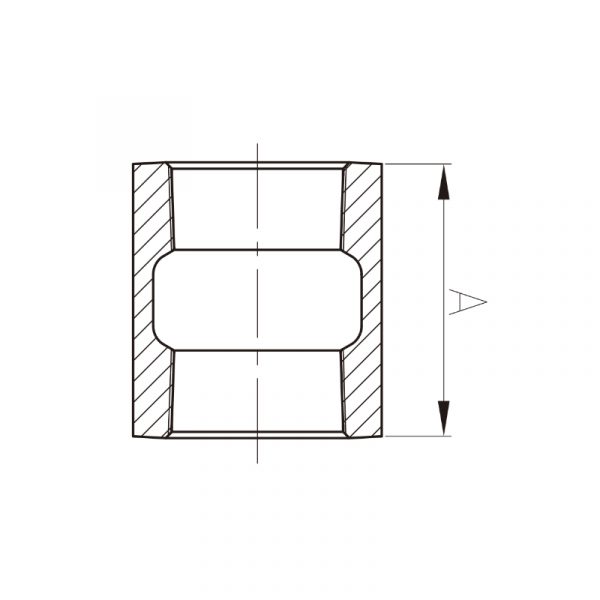

| Inch | mm | A |
|---|---|---|
| 1/2 | 15 | 35 |
| 3/4 | 20 | 40 |
| 1 | 25 | 46 |
| 1.1/4 | 32 | 50 |
| 1.1/2 | 40 | 56.5 |
| 2 | 50 | 65.5 |
