180 Cross

180 - Cross

Product Description

Product Certification
UL Listed / FM Approved (EX 6624)

Material
ASTM A536

Threads
ASME B1.20.1

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa

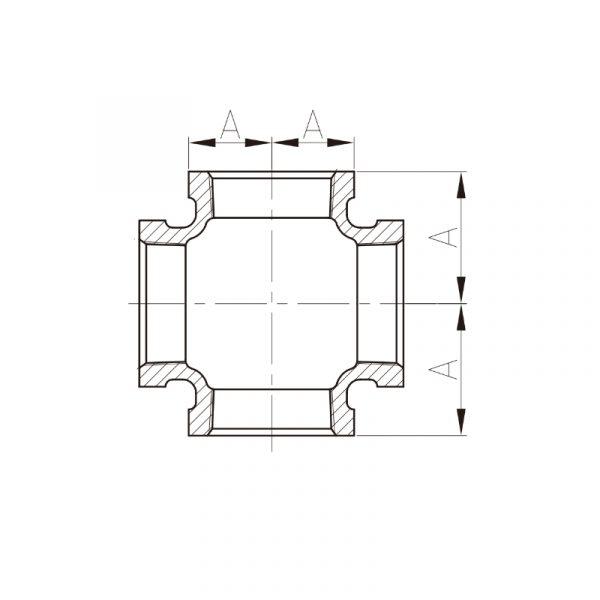

Dimensions (in mm)

Inch mm A
3/4 20 33.1
1 25 38.1
1.1/4 32 44.5
1.1/2 40 49.3
2 50 57.2
