Product Certification
UL Listed / FM Approved (EX 6624)
Material
ASTM A536
Threads
ASME B1.20.1
Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa

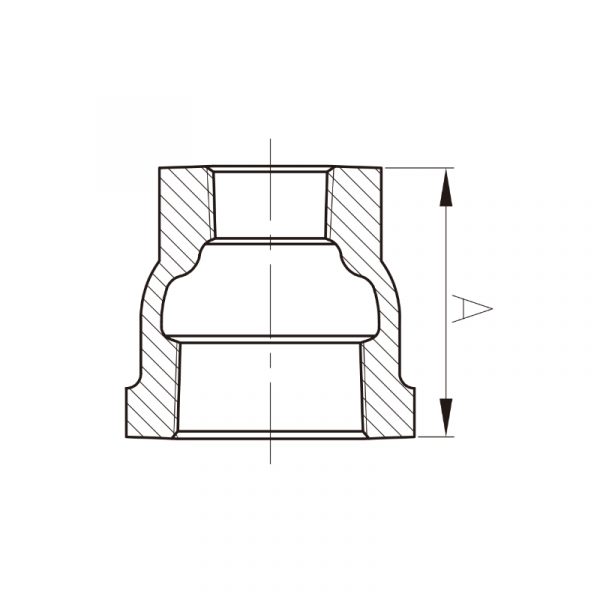

Inch | mm | A |
---|---|---|
1×1/2 | 25×15 | 42.9 |
1×3/4 | 25×20 | 42.9 |
1.1/4×3/4 | 32×20 | 52.3 |
1.1/4×1 | 32×22 | 52.3 |
1.1/2×1 | 40×25 | 58.7 |
1.1/2×1.1/4 | 40×32 | 58.7 |
2×1 | 50×25 | 71.4 |
2×1.1/4 | 50×32 | 71.4 |
2×1.1/2 | 50×40 | 71.4 |
