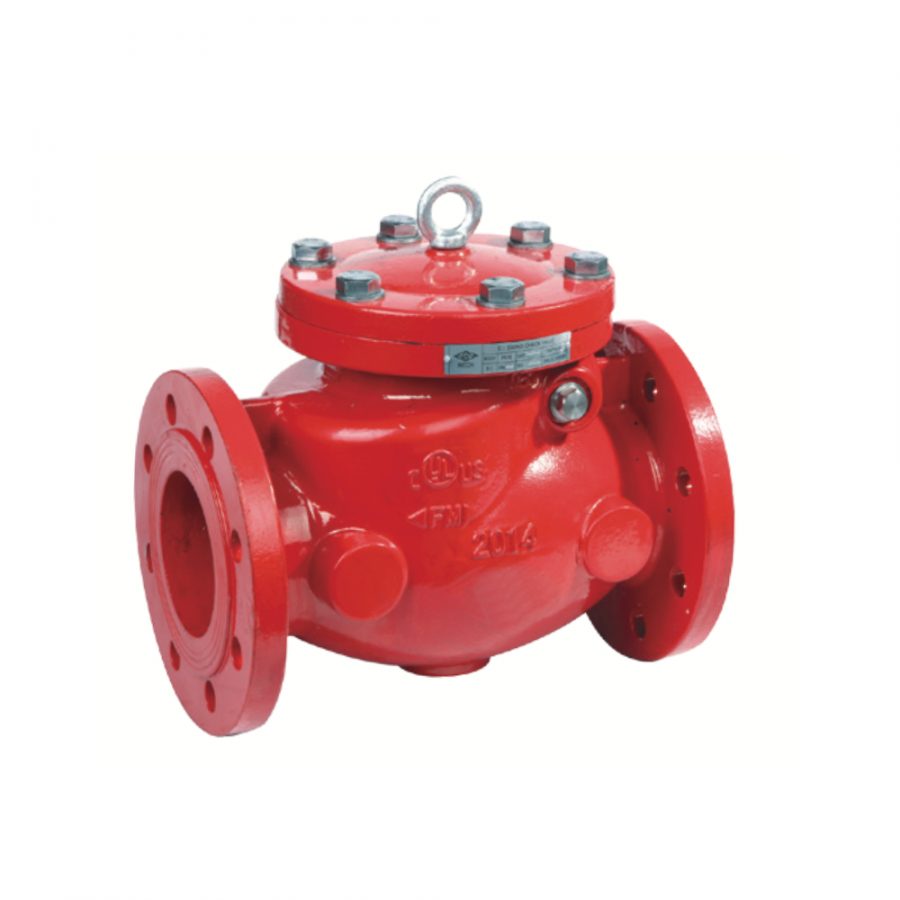

Product Certification
UL Listed / FM Approved / LPCB Approved (EX 29404)
Connection Ends
Flange to BS EN 1092-2:1997
Working Pressure
PN16
Temperature Range
0°C – 100°C
Coating
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550

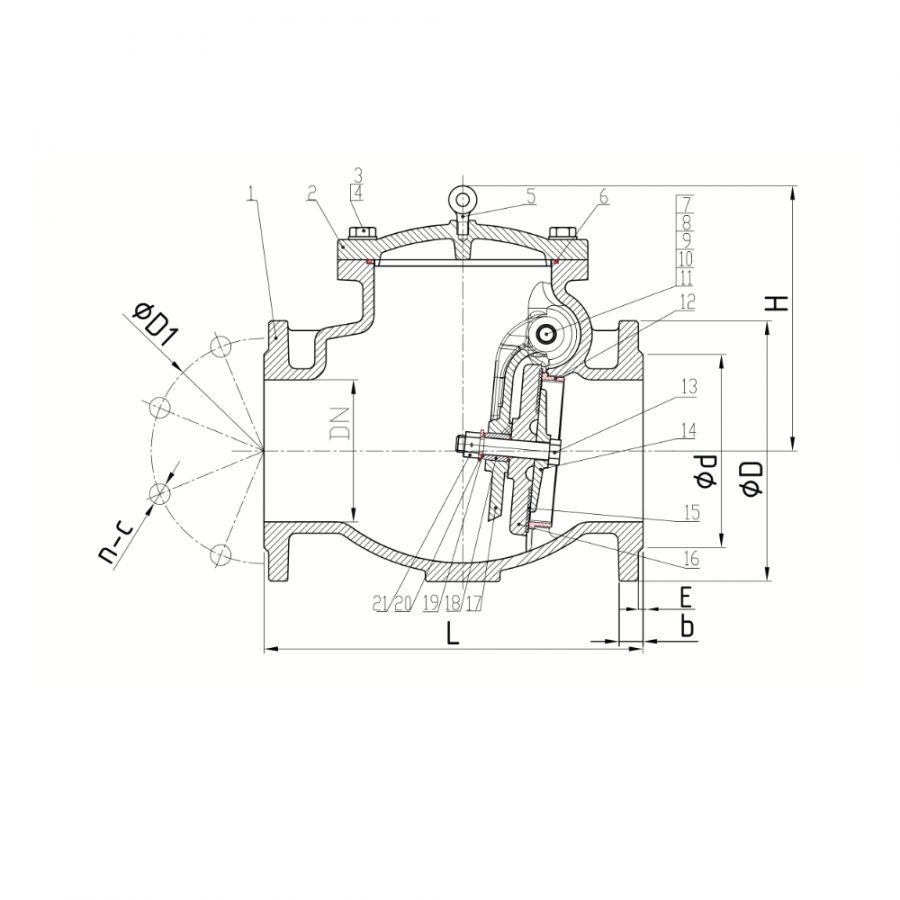

| Part No. | Part | Standard Specification |
|---|---|---|
| 1 | Valve Body | EN-GJS-450-10 |
| 2 | Bonnet | EN-GJS-450-10 |
| 3 | Flat Washer | Carbon Steel Zinc Plated |
| 4 | Bolts | Carbon Steel Zinc Plated |
| 5 | Eye Bolt | Carbon Steel Zinc Plated |
| 6 | O-Ring | EPDM |
| 7 | Plug | SS304 |
| 8 | O-Ring | EPDM |
| 9 | Hinge Pin | SS304 |
| 10 | Washer | Brass ASTM B16 C36000/Hpb63-3 |
| 11 | Hinge Bushing | Brass ASTM B16 C36000/Hpb63-3 |
| 12 | Seat Ring | Bronze ASTM B62 C83600/ZQSn5-5-5(Pressed Fit) |
| 13 | Disc Seat Bolts | SS304 |
| 14 | Retainer Washer | Bronze ASTM B62 C83600/ZQSn5-5-5 |
| 15 | Disc Seat Ring | EPDM |
| 16 | Disc | EN-GJS-450-10 |
| 17 | Clapper Arm | EN-GJS-450-10 |
| 18 | Disc Bushing | Brass ASTM B16 C36000/Hpb63-3 |
| 19 | O-Ring | EPDM |
| 20 | Washer | Brass ASTM B16 C36000/Hpb63-3 |
| 21 | Nut | Bronze ASTM B62 C83600/ZQSn5-5-5 |
| Inch | mm | L | D | D1 | d | b | E | H | n-∅d |
|---|---|---|---|---|---|---|---|---|---|
| 2″ | 50 | 203 | 165 | 125 | 99 | 19 | 3 | 133 | 4-∅19 |
| 2.5″ | 65 | 216 | 185 | 145 | 118 | 19 | 3 | 150 | 4-∅19 |
| 3″ | 80 | 241 | 200 | 160 | 132 | 19 | 3 | 150 | 8-∅19 |
| 4″ | 100 | 292 | 220 | 180 | 156 | 19 | 3 | 218 | 8-∅19 |
| 6″ | 150 | 356 | 285 | 240 | 211 | 19 | 3 | 290 | 8-∅23 |
| 8″ | 200 | 495 | 340 | 295 | 266 | 20 | 3 | 330 | 12-∅23 |
| 10″ | 250 | 622 | 405 | 355 | 319 | 22 | 3 | 350 | 12-∅28 |
| 12″ | 300 | 698 | 460 | 410 | 370 | 24.5 | 4 | 376 | 12-∅28 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
