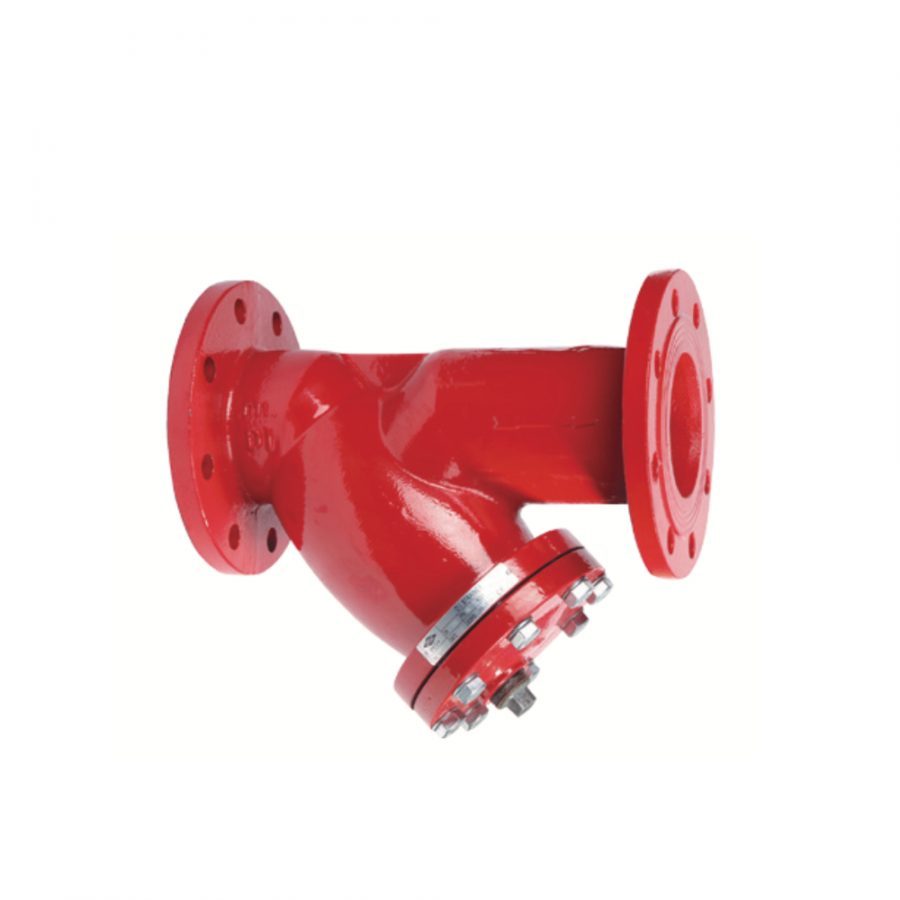

V4 Flanged Y-Type Strainer

PN16, UL Listed
V4 - Flanged Y-Type Strainer

Product Description

Product Certification
UL Listed (EX 29402)

Connection Ends
Flange to BS EN 1092-2:1997

Working Pressure
PN16

Temperature Range
0°C – 100°C Rubber Gasket

Coating
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550


Materials

Part No. Part Standard Specification
1 Valve Body EN-GJS-450-10
2 Screen SS304 (Perforated)
3 Gasket Rubber
4 Bonnet EN-GJS-450-10
5 Plug Malleable Iron Galvanized
6 Bolt Carbon Steel Zinc Plated
7 Flat Washer Carbon Steel Zinc Plated

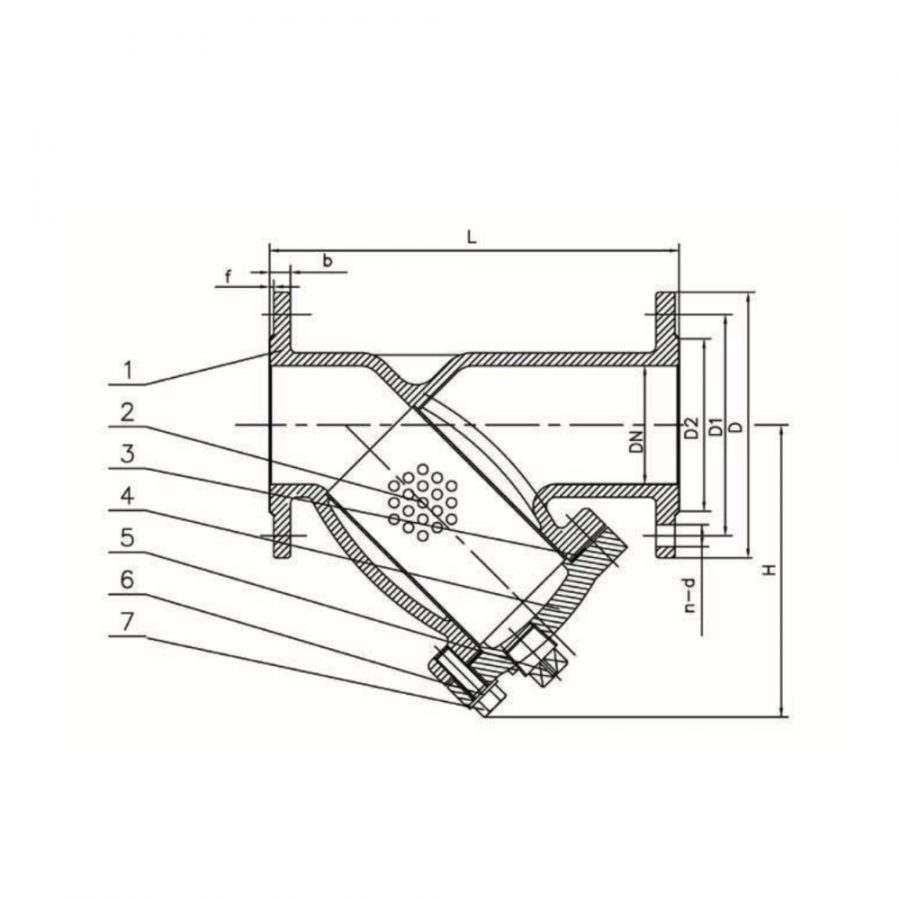

Dimensions (in mm)

Inch mm L D D1 n-∅d
2″ 50 230 165 125 4-∅19
2.5″ 65 290 185 145 4-∅19
3″ 80 310 200 160 8-∅19
4″ 100 350 220 180 8-∅19
5″ 125 400 250 210 8-∅19
6″ 150 480 285 240 8-∅23
8″ 200 600 340 295 12-∅23
10″ 250 730 405 355 12-∅28
12″ 300 850 460 410 12-∅28
18″ 450 1200 640 585 20-∅31
20″ 500 1250 715 650 20-∅34
24″ 600 1450 840 770 20-∅37

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
