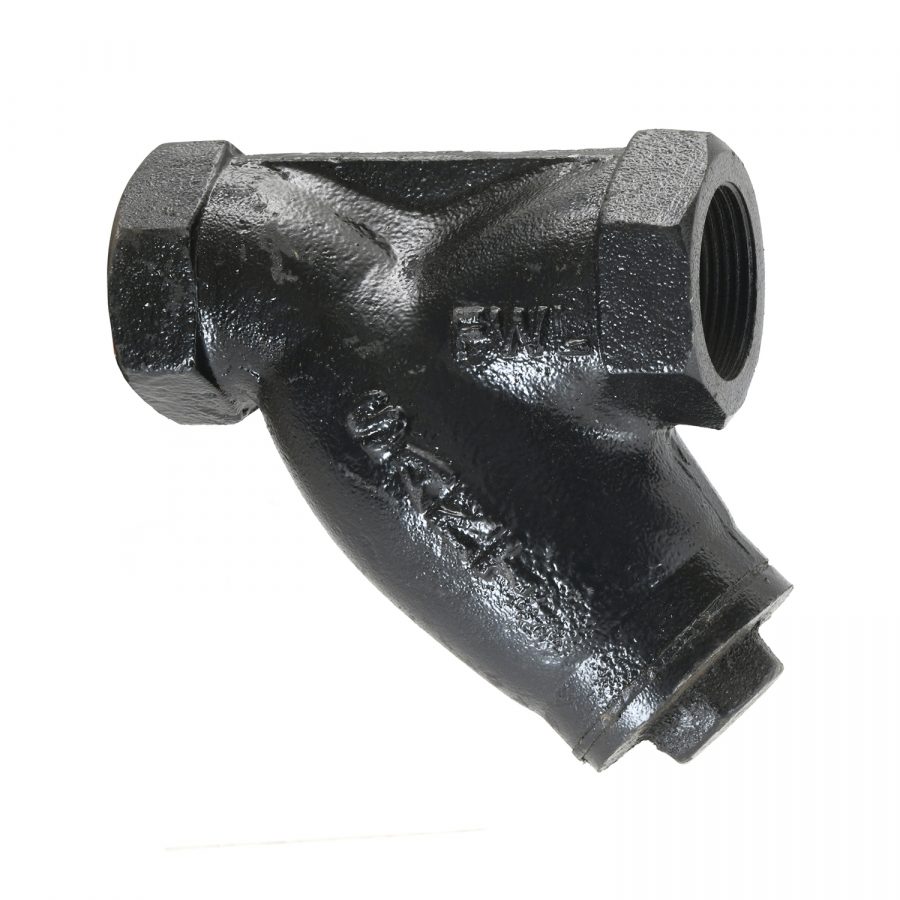

CI-16 Cast Iron Y Type Strainer

Screwed
CI-16 - Cast Iron Y Type Strainer
  • Application
  • Water

Product Description HSN : 84818030

Product : ‘SANT’ Cast Iron Y Type Strainer
Type of Pattern : Y Type
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Description : Screwed in cover
Trim : SS AISI-304 Screen having 1.2mm perforation
End Details : Screwed Female BSP Parallel threads to BS 21.


Testing & Certification

Body Test Pressure : 21.09Kg/cm²g (300 Psig.) Hyd.
Working Pressure : 10.54Kg/cm²g (150 Psig.) Hyd.
Max Working Temperature: 225°C

Our Works’ Test Certificate is furnished with every supply.

Materials

Components Materials Specifications
Body, Cover Cast Iron IS:210 Gr.FG200
Screen Stainless Steel S.S. (AISI-304)
Gasket Compressed Asbestos Fibre IS:2712 Gr.C

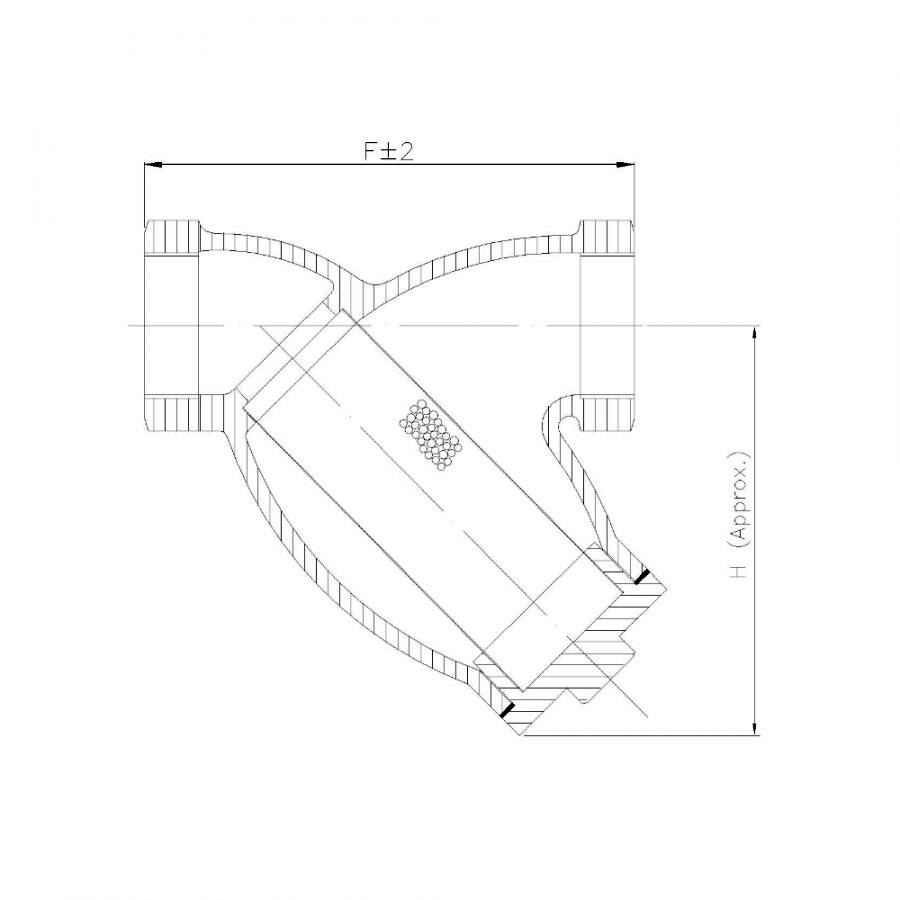

Dimensions (in mm)

Nominal Size Nominal Size (Inches) F
H (Approx.)
15 1/2 70±2 55
20 3/4 90±2 60
25 1 125±2 95
32 1.1/4 125±2 105
40 1.1/2 160±2 120
50 2 200±2 160

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
