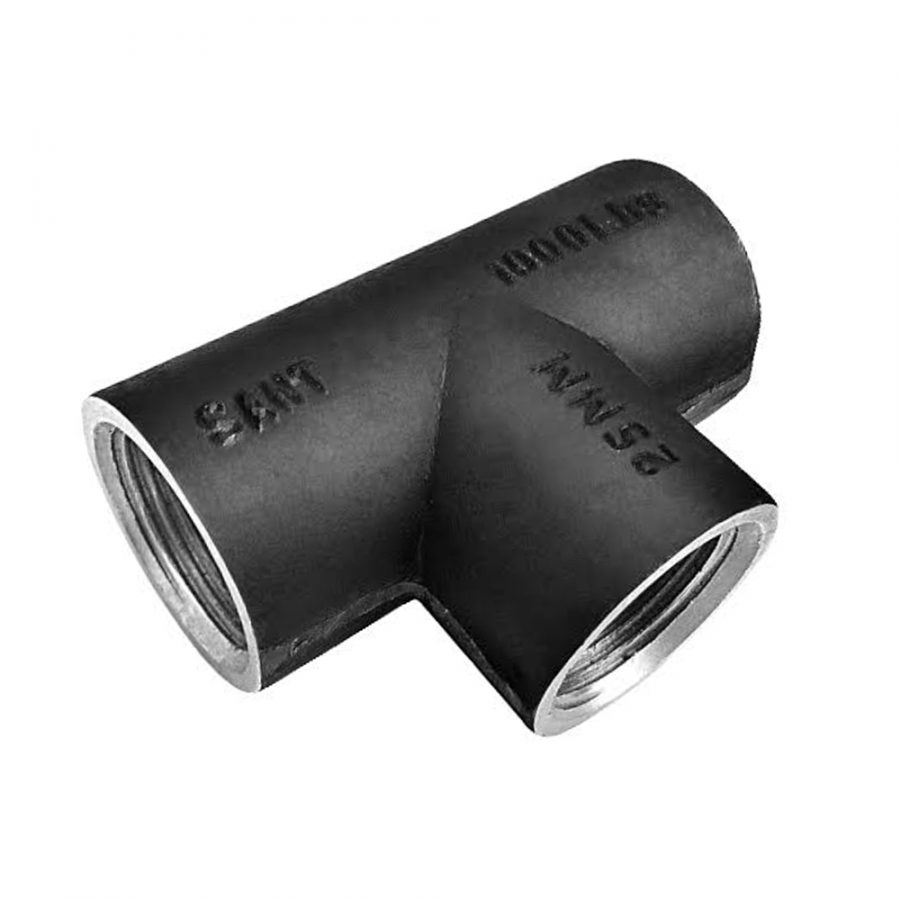

Tee

Tee

Product Description

Product Standard
As per IS:1239 (PART2): 1992 Screwed BSP Ends.
The carbon steel used in drop forged steel pipe fittings contains sulphur and phosphorus not exceeding 0.06% each.

End Connections
Screwed Female Ends conform to BSP as per BS21 / IS:554.
Other types of threads i.e. NPT can be given on request.

Test Pressure
IS:1239 (PART2) 1992-Pipe Fittings are tested to 1000 psig. (Hyd.)

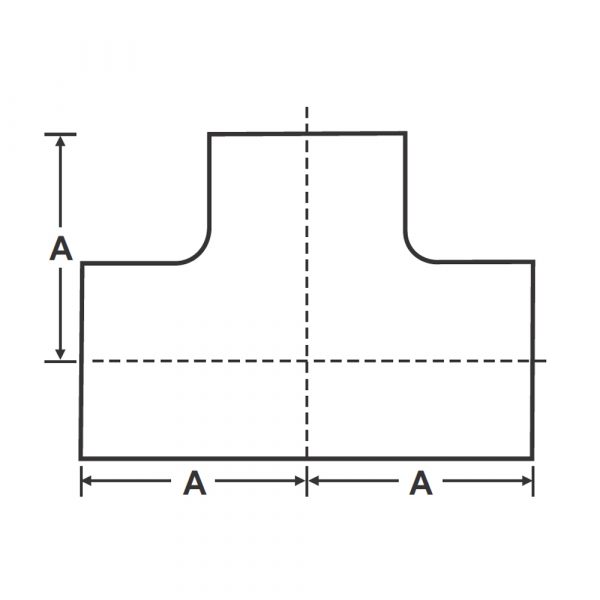

Dimensions (in mm)

Nominal Size of Outlet Minimum Length Center to Face (A)
8 22
10 24
15 32
20 35
25 43
32 51
40 52
50 64
65 76
80 89
