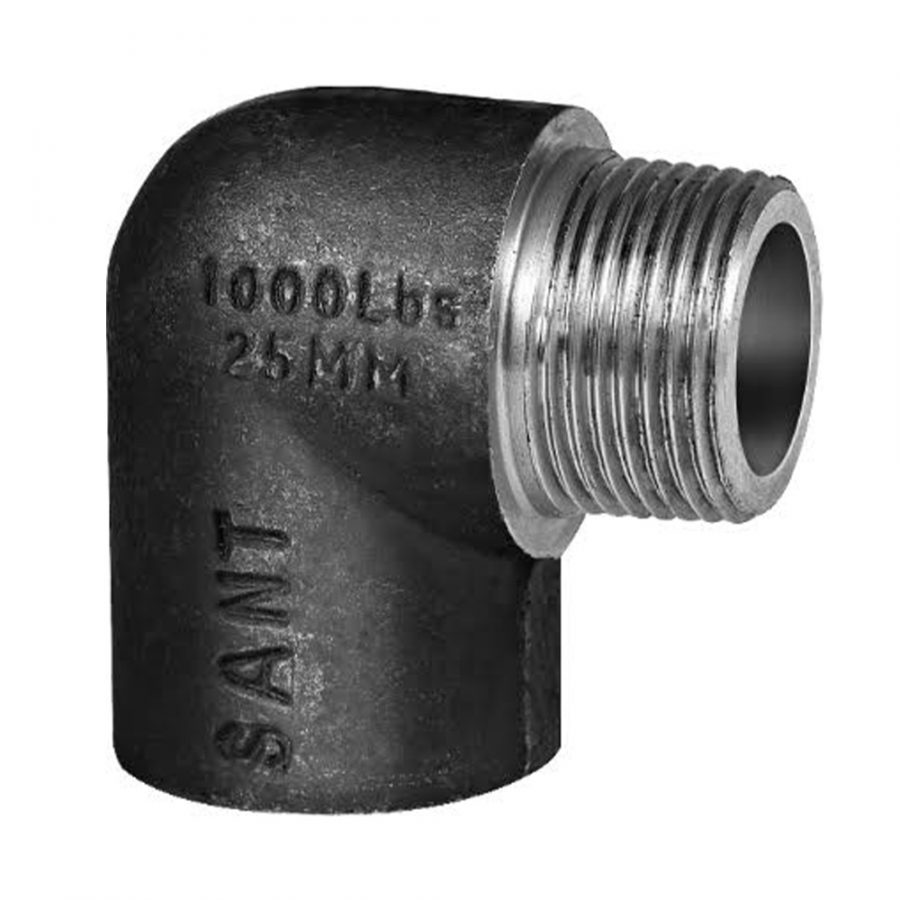

Male Female Elbow

Male Female Elbow

Product Description

Product Standard
As per IS:1239 (PART2): 1992 Screwed BSP Ends.
The carbon steel used in drop forged steel pipe fittings contains sulphur and phosphorus not exceeding 0.06% each.

End Connections
Screwed Female Ends conform to BSP as per BS21 / IS:554.
Other types of threads i.e. NPT can be given on request.

Test Pressure
IS:1239 (PART2) 1992-Pipe Fittings are tested to 1000 psig. (Hyd.)

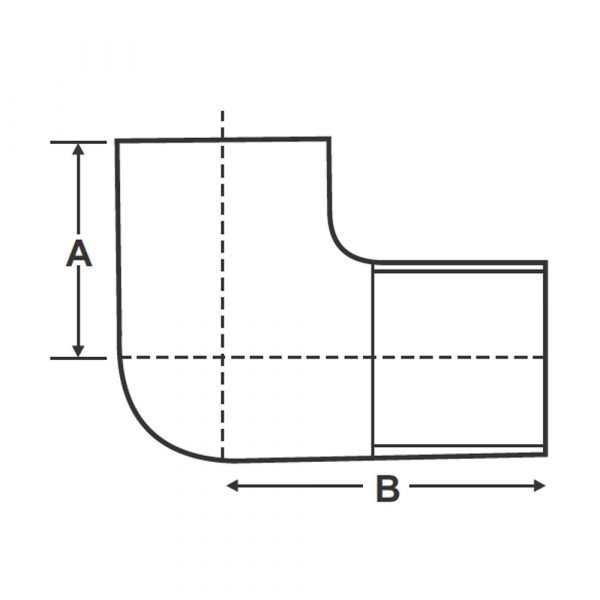

Dimensions (in mm)

Nominal Size of Outlet Minimum Length Center to Face (A) Minimum Length Center to face (B) Minimum Bore of Male End Maximum Bore of Male End
8 19 27 6.5 8
10 21 29 8.5 10.5
15 25 35 11.5 13
20 30 40 18 21
25 37 46 24 26
32 43 54 30 32
40 49 57 37 39
50 59 70 48 51
