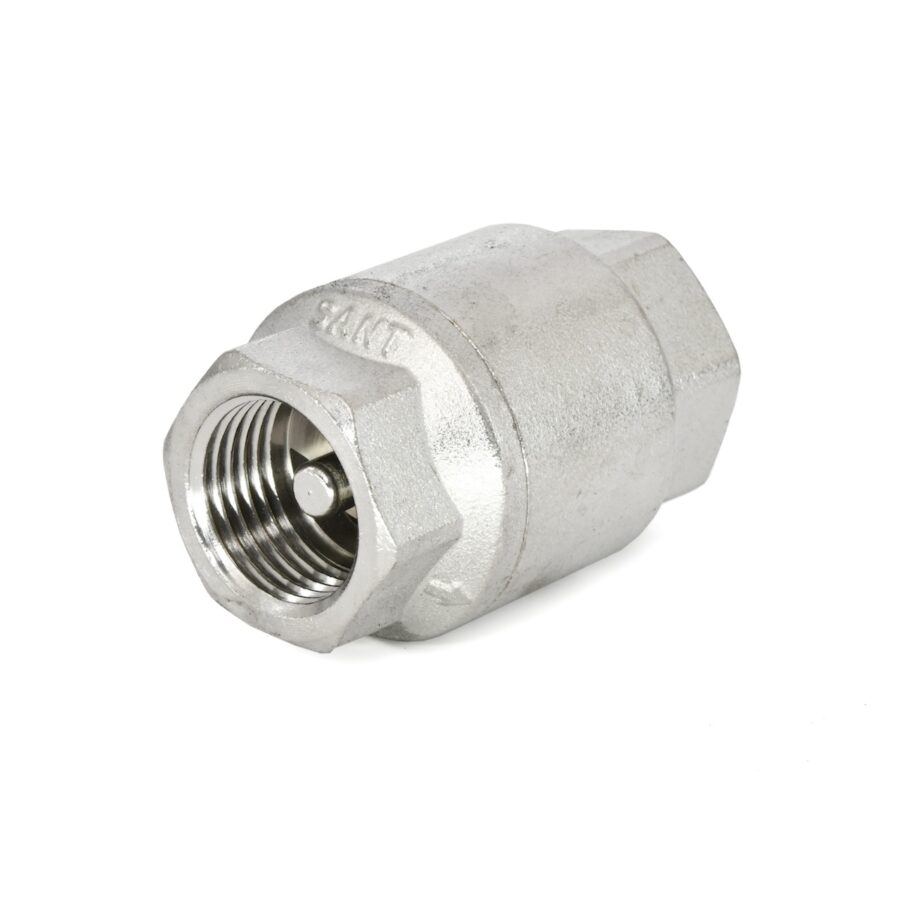

BUCV Universal Check Valve

Photo Not Available

Product Description

Product : Sant Brass Universal Check Valve
Body Material : Forged Brass
Type of Seat : Integral Seat
Type of Disc : Brass With ‘O’ Ring
End Details : Screwed end with BSP Parallel Threads

Testing & Certification

Body Test Pressure : 20kg/cm²g (Hyd.)
Seat Test Pressure : 13.65kg/cm²g (Hyd.)


Components Materials Specifications
Body Forged Brass IS:6912 FLB
Disc Brass
Spring Steel
‘O’ Ring Rubber
Lower Body Forged Brass IS:6912 FLB

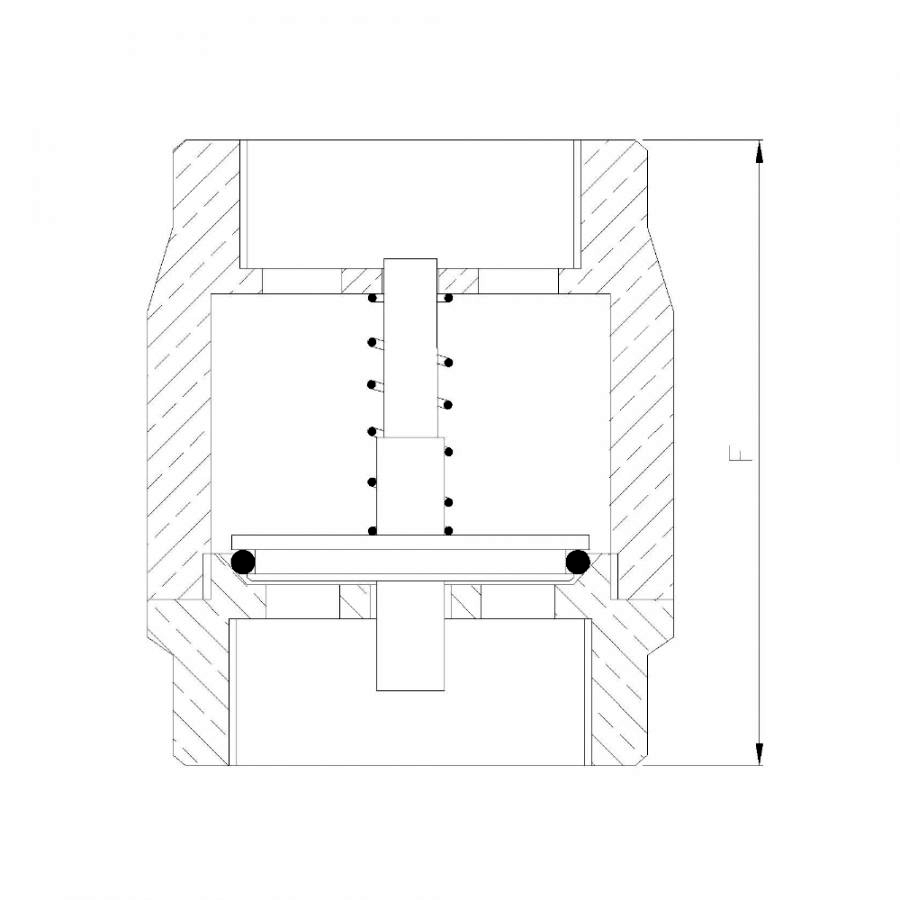

Dimensions (in mm)

Size L
15 52
20 59
25 65
32 69
40 79
50 89

1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
