RSV DI Resilient Seated Gate Valve

RSV - DI Resilient Seated Gate Valve

Product Description

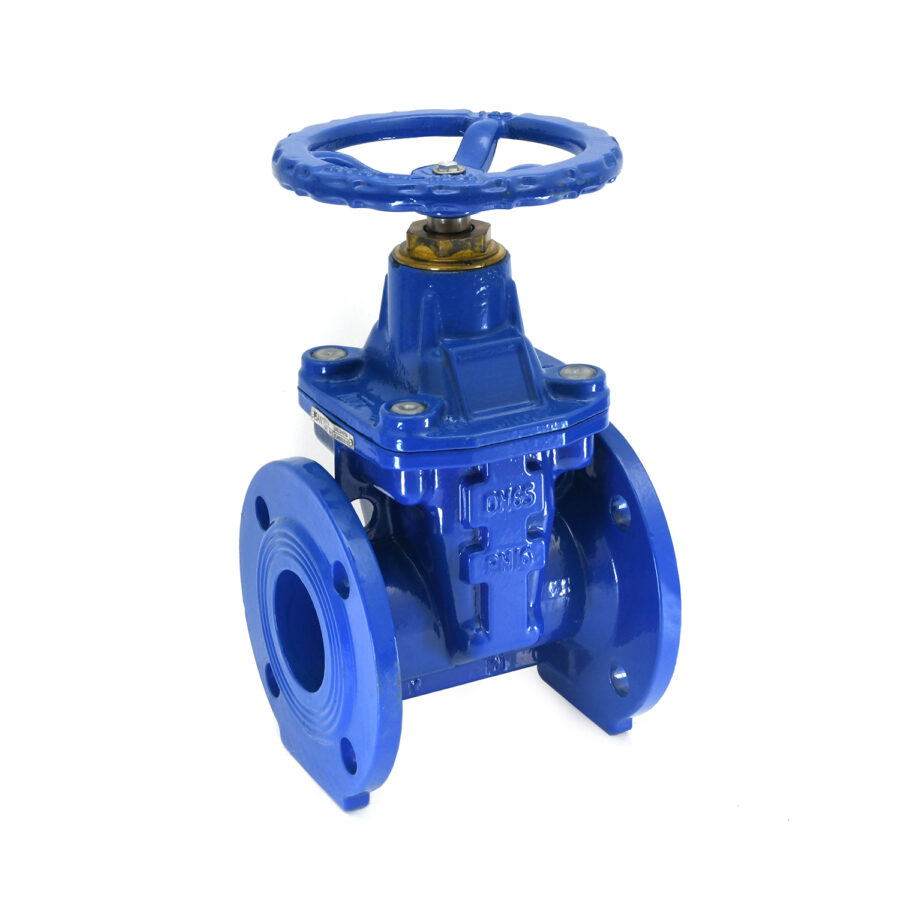

Product : Sant D.I. Resilient Seated Gate/Sluice Valve
Pressure Rating : PN-16
Pressure Description : DI Sluice Valve, Non Rising Stem Resilient Soft Seated
Type of Wedge : DI+EPDM
Trim : AISI-420
Gland Packing : O Ring NBR
End Details : Flanged as per IS-1538 R/F Drilled


Testing & Certification

Body Test Pressure : 2.4MPa Hyd.
Seat Test Pressure : 1.6MPa Hyd.

Materials

Components Materials Specifications
Washer Carbon Steel
Handwheel D.I.(SG Iron) IS:1865 Gr SG450/10
Lock Nut Brass
‘O’ Rings Rubber EPDM
Bonnet D.I.(SG Iron) IS:1865 Gr SG450/10
Stem S.S. AISI-420
Body D.I.(SG Iron) IS:1865 Gr SG450/10
Wedge Nut Brass
Wedge DI+EPDM IS:1865 Gr SG450/10
Bolts & Nuts Carbon Steel (Zinc Plated)
Gasket Rubber

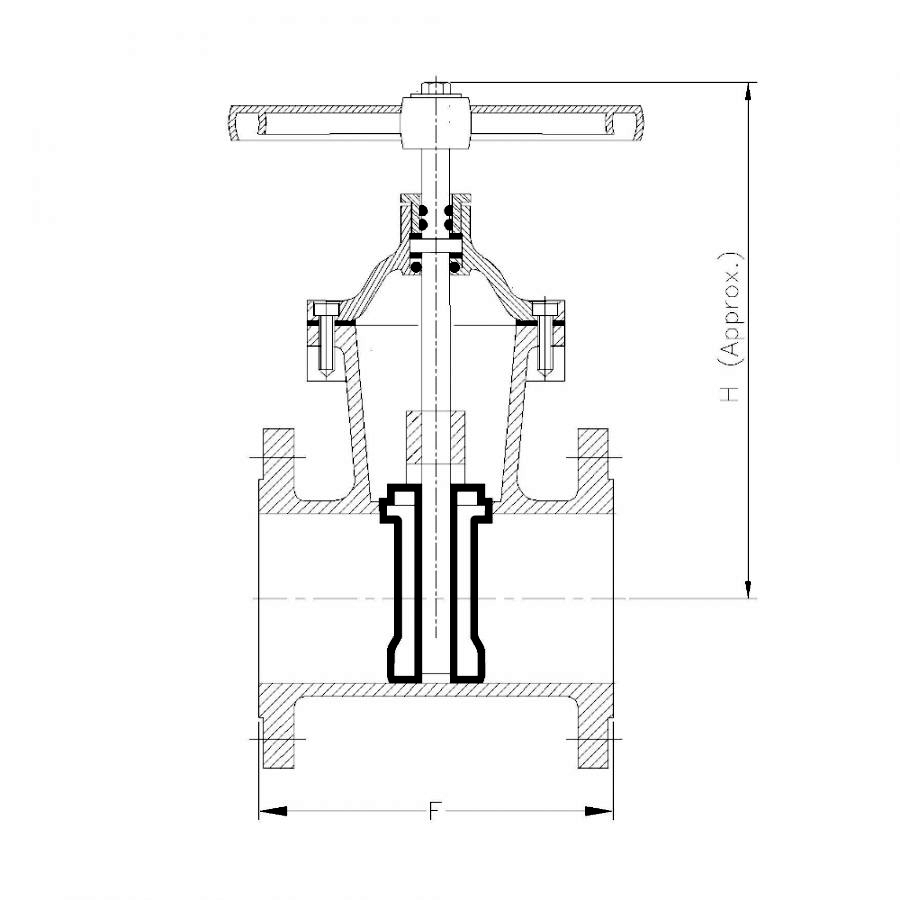

Dimensions (in mm)

Size F±2 H øD nXød K
50 178 216 165 4X19 125
65 190 254 185 4X19 145
80 203 282 200 4X19 160
100 229 307 220 8X19 180
125 254 365 250 8X19 210
150 267 409 285 8X23 240
200 292 515 340 8X23 295
250 330 625 405 12X23 350
300 356 705 460 12X23 400

K=PCD

nXød = No. of holes x Hole Dia.

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
