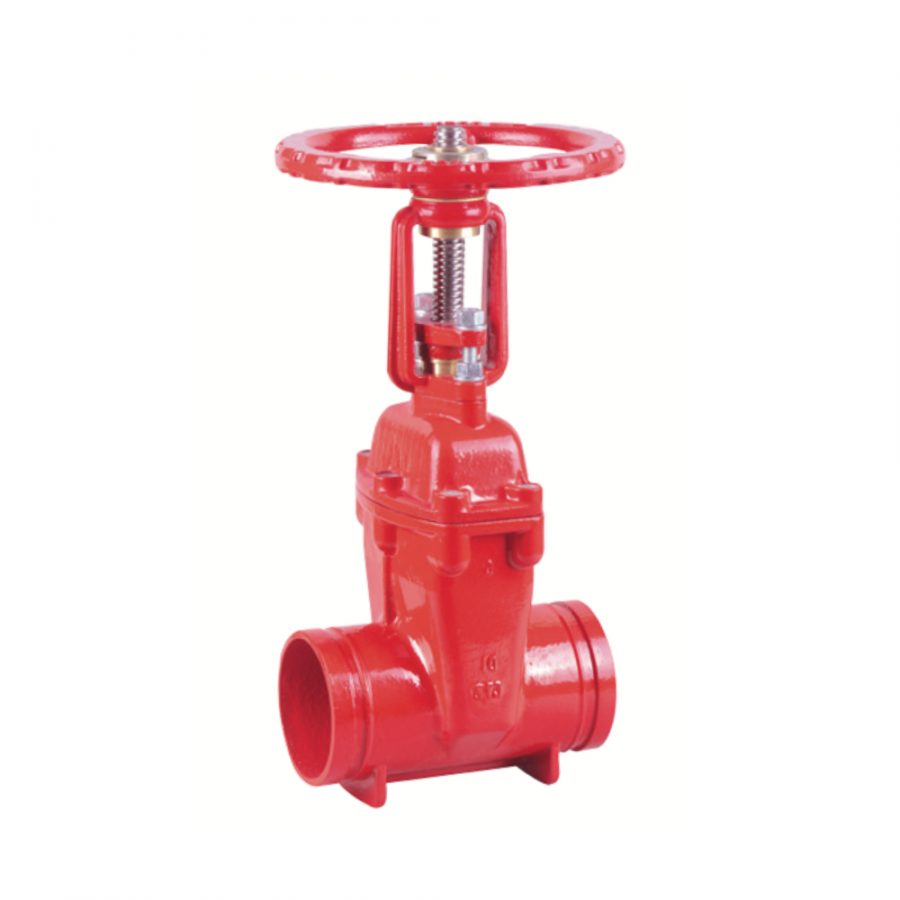

XZ81X Grooved Resilient OS&Y Gate Valve

PN16, UL/FM Approved
XZ81X - Grooved Resilient OS&Y Gate Valve

Product Description

Product Certification
UL Listed / FM Approved (EX 15973)

Connection Ends
Groove to ISO 6182

Working Pressure
PN16

Temperature Range
0°C – 100°C

Coating
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon request


Materials

Part No. Part Standard Specification
1 Valve Body EN-GJS-450-10
2 Resilient Wedge Disc EN-GJS-450-10+EPDM
3 O-Ring NBR
4 Stem Stainless Steel
5 Nut Carbon Steel Zinc Plated
6 Bonnet EN-GJS-450-10
7 Stem Bushing Brass Hpb59-1
8 Gland EN-GJS-450-10
9 Flat Washer Carbon Steel Zinc Plated
10 Stud Carbon Steel Zinc Plated
11 Nut Carbon Steel Zinc Plated
12 Yoke EN-GJS-450-10
13 Stem Nut Brass Hpb59-1
14 Washer Brass Hpb59-1
15 Locknut Carbon Steel Zinc Plated
16 Handwheel EN-GJS-450-10
17 Stem Packing EPDM
18 Bonnet Gasket EPDM

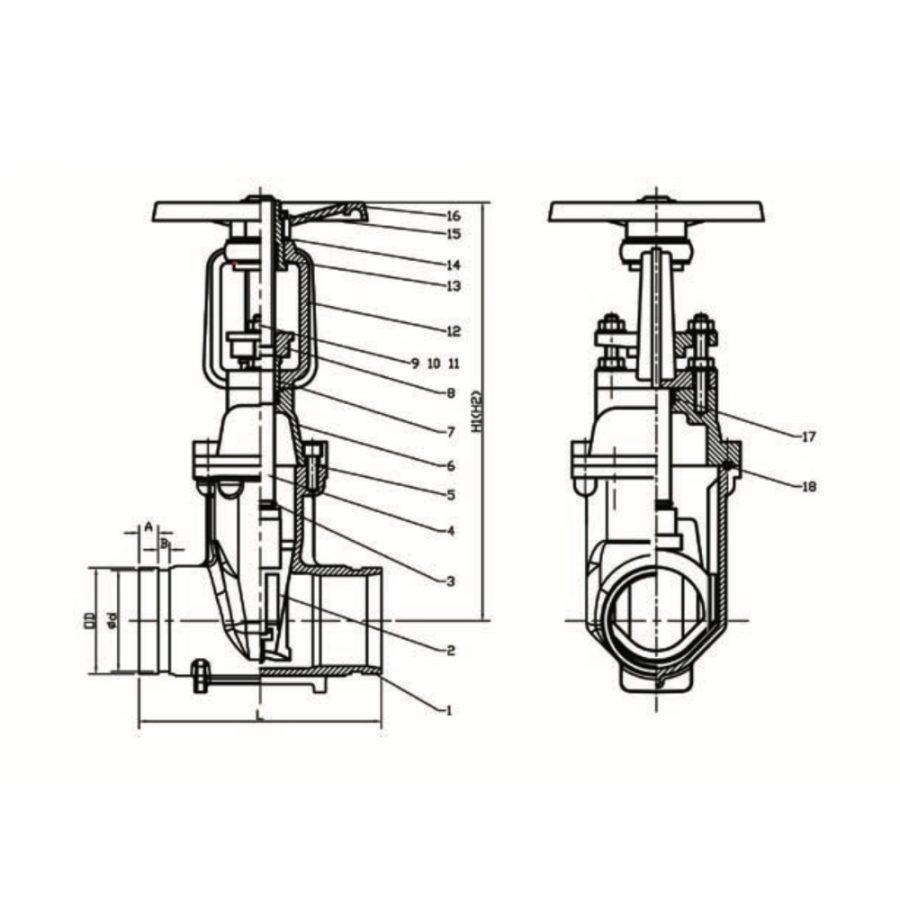

Dimensions (in mm)

Inch mm L H2 (Max) OD d A B
2″ 50 178 373 60.3 57.15 15.88 7.92
2.5″ 65 190 408 76.1 72.26 15.88 7.92
3″ 80 203 450 88.9 84.94 15.88 7.92
4″ 100 229 542 114.3 110.08 15.88 9.52
5″ 125 254 665 139.7 135.48 15.88 9.52
6″ 150 267 758 165.1 160.9 15.88 9.52
8″ 200 292 920 219.1 214.4 19.05 11.13
10″ 250 330 1193 273 268.28 19.05 12.7
12″ 300 356 1370 323.9 318.29 19.05 12.7

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
