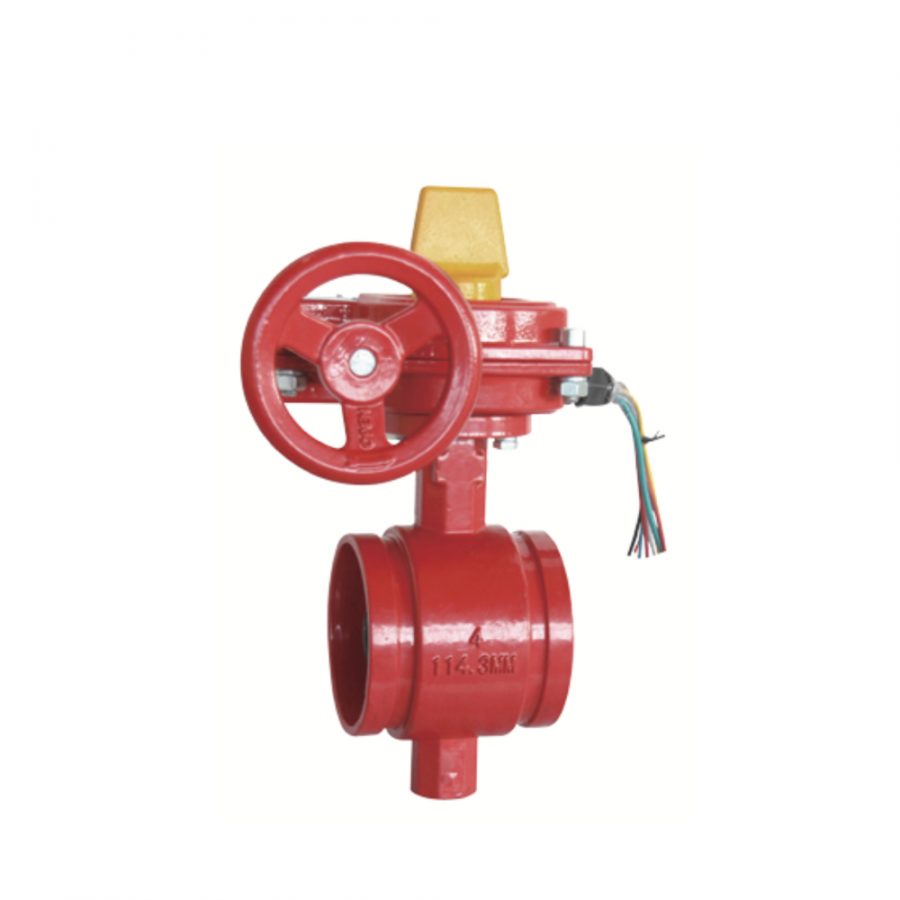

XD381X Grooved Butterfly Valve with Tamper Switch

UL/FM/VdS Approved
XD381X - Grooved Butterfly Valve with Tamper Switch

Product Description

Product Certification
UL Listed / FM Approved / VdS Approved

Design Standard
BS EN 593

Connection Ends
Groove to ISO 6182

Top Flange Standard
ISO 5211
Stem drive by keys, parallel or diagonal square or flat head

Working Pressure
PN16

Temperature Range
0°C – 100°C

Coating
Fusion Bonded Epoxy Coating in accordance with ANSI/AWWA C550 or painting upon request


Materials

Part No. Part Standard Specification
1 Body EN-GJS-450-10
2 O-Ring NBR
3 Stub Shaft SS431
4 Disc EN-GJS-450-10+EPDM
5 Drive Shaft SS431
6 Hex Nut Carbon Steel Zinc plated
7 Signal Gearbox Body:EN-GJS-450-10
8 O-Ring NBR

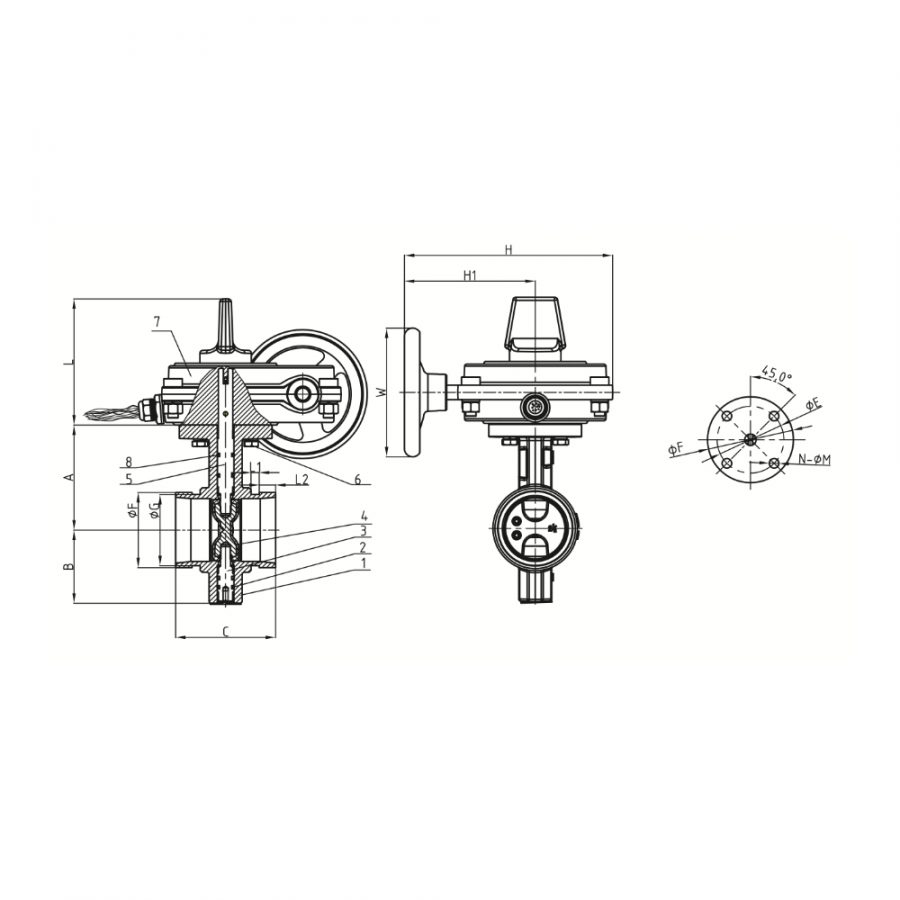

Dimensions (in mm)

Inch mm A+B+L C F G H W
2″ 50 276.5 81 60.3 57.15 202.2 125
2.5″ 65 295.5 97 76.1 72.26 202.2 125
3″ 80 312.5 97 88.9 84.94 202.2 125
4″ 100 345.5 116 114.3 110.08 202.2 125
5″ 125 374.5 148 139.7 135.48 202.2 125
6″ 150 408.5 148 165.1 160.9 215 225
8″ 200 470.5 133 219.1 214.4 274 225
10″ 250 534.5 159 273.1 268.28 274 225
12″ 300 612 165 323.9 318.29 293.5 225

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
