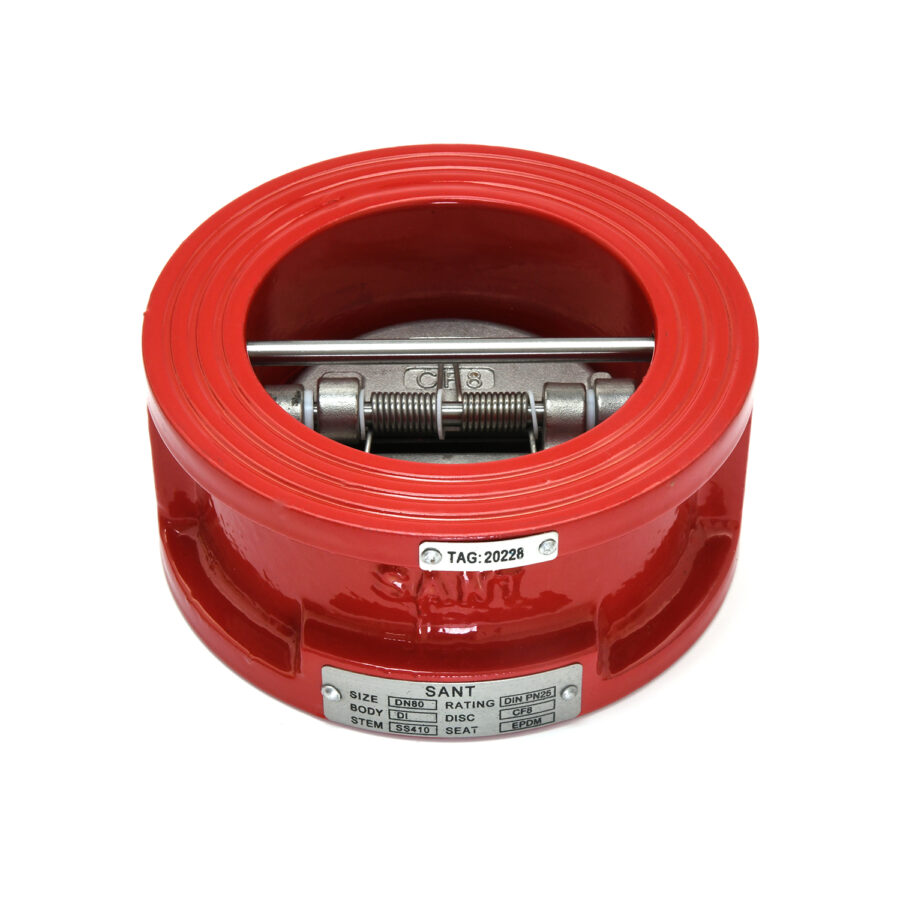

DP2 Dual Plate Water Check Valve

DP2 - Dual Plate Water Check Valve

Product Description HSN : 84813000

Product : Sant Dual Plate Wafer Check Valve
Pressure Rating : PN-25
Body Material cum Standard : Ductile Iron
Product Description : Wafer Type Spring Loaded
Type of Seat : EPDM Rubber Lining
Type of Disc : SS 304 (CF-8)
Trim : Spring & Pins SS
End Details : Wafer type suitable for clamping between flanges as per ASME B 16.5 Class-150


Testing & Certification

Body Test Pressure : 3.8 MPa Hyd.
Seat Test Pressure : 2.7 MPa Hyd.

Materials

Components Materials Specifications
Body Ductile Iron
Body Seat E.P.D.M
Disc CF-8
Hinge Pin SS
Stop Pin SS
Spring Spring Steel
Bush P.T.F.E
Plug Carbon Steel

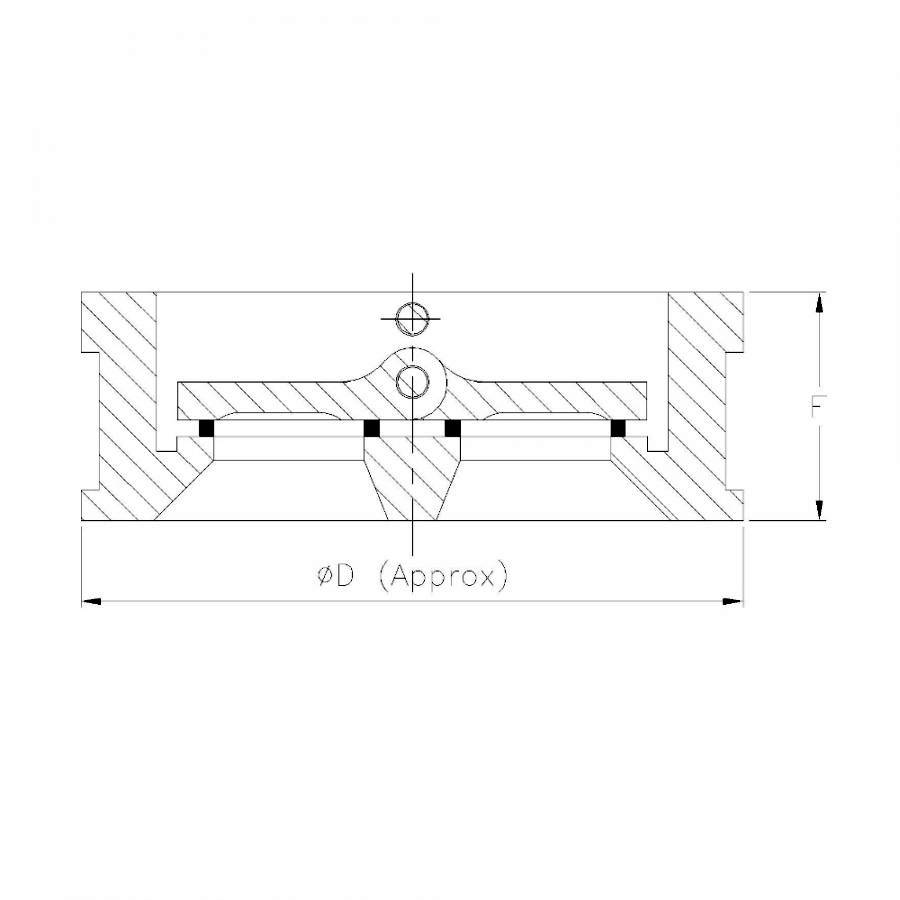

Dimensions (in mm)

Size F±2 D
50 43 107
65 46 127
80 64 142
100 64 168
125 70 193
150 76 223
200 89 283
250 114 340
300 143 390

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
