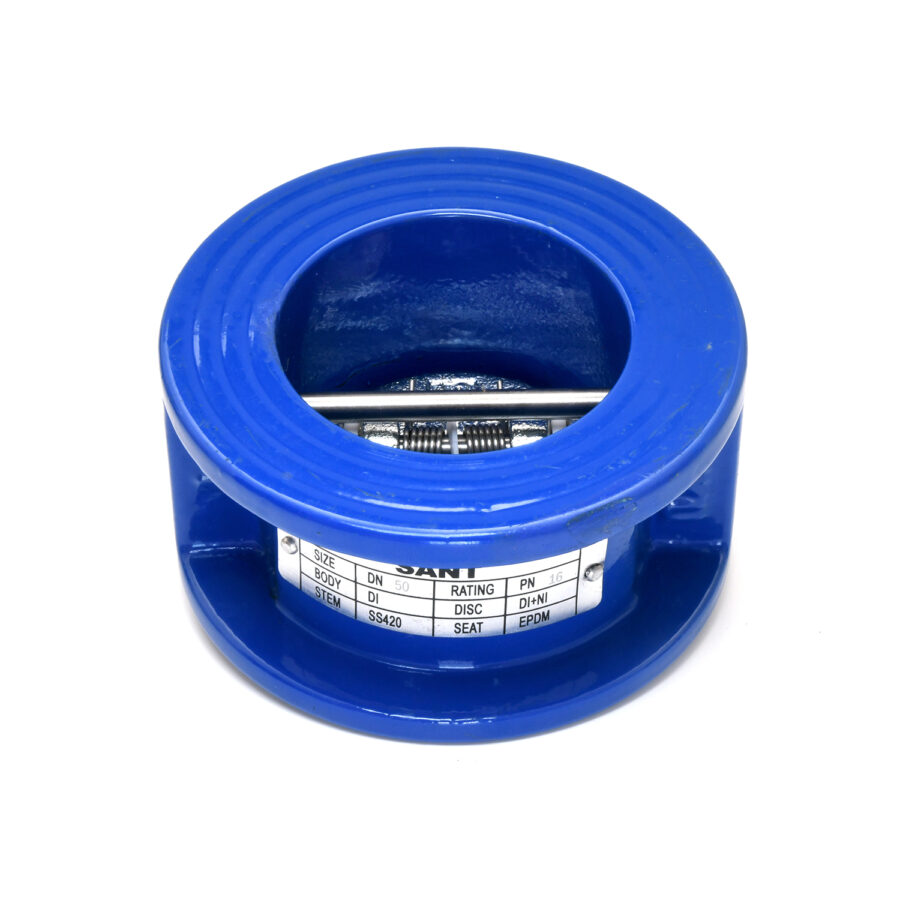

DP Dual Plate Water Check Valve

Photo Not Available

Product Description HSN : 84813000

Product : Sant Dual Plate Wafer Check Valve
Pressure Rating : PN-16
Body Material cum Standard : CI IS 210 Gr. FG200
Pressure Description : Wafer Type Spring Loaded
Type of Seat : EPDM Rubber Lining
Type of Disc : Ductile Iron Disc
Trim : Spring & Pins SS 304
End Details : Wafer type suitable for clamping between flanges as per ASME B 16.5 Class-150


Testing & Certification

Body Test Pressure : 300Psig. Hyd.
Seat Test Pressure : 200Psig. Hyd.

Materials

Components Materials Specifications
Body Cast Iron IS210 Gr.FG200
Body Seat Rubber E.P.D.M
Disc D.I (SG Iron) IS:1865,GR-400/15
Hinge Pin SS AISI-420
Stop Pin SS AISI-420
Spring Spring Steel AISI-304
Bush/Bearing P.T.F.E
Plug SS AISI-410

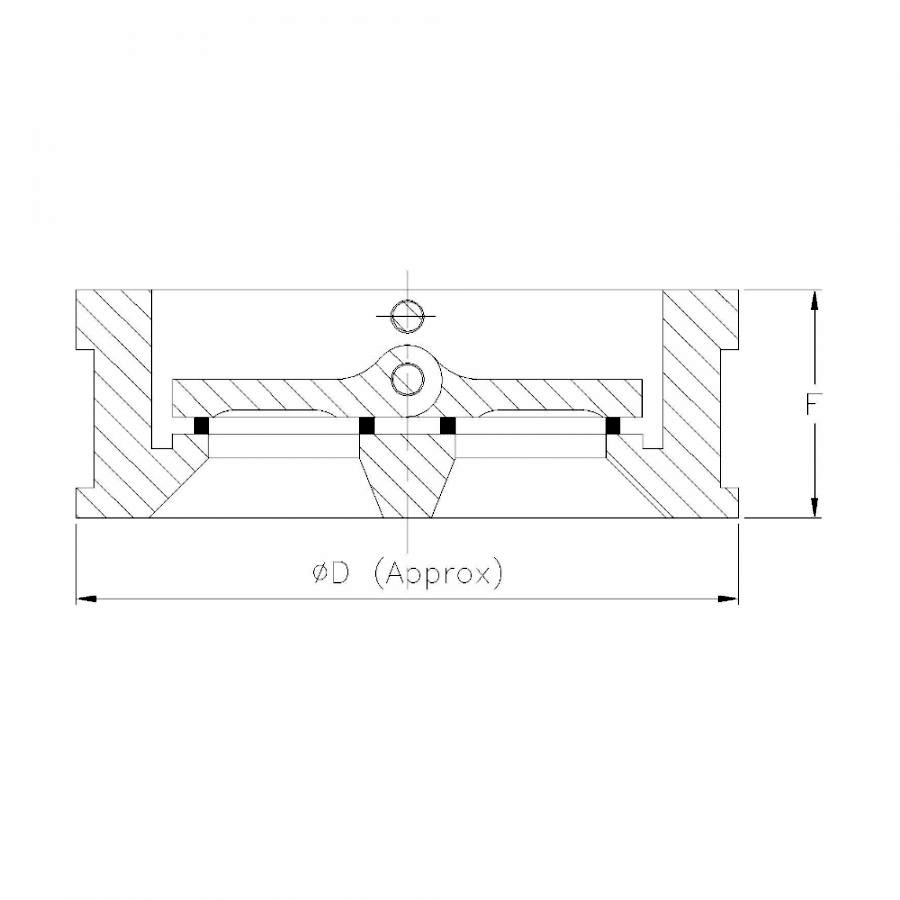

Dimensions (in mm)

Size F D B
50 54 107 65
65 54 127 80
80 57 142 94
100 64 164 117
125 70 192 145
150 76 218 170
200 95 273 224
250 114 328 264
300 114 382 309
350 127 442 360
400 140 494 410

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
