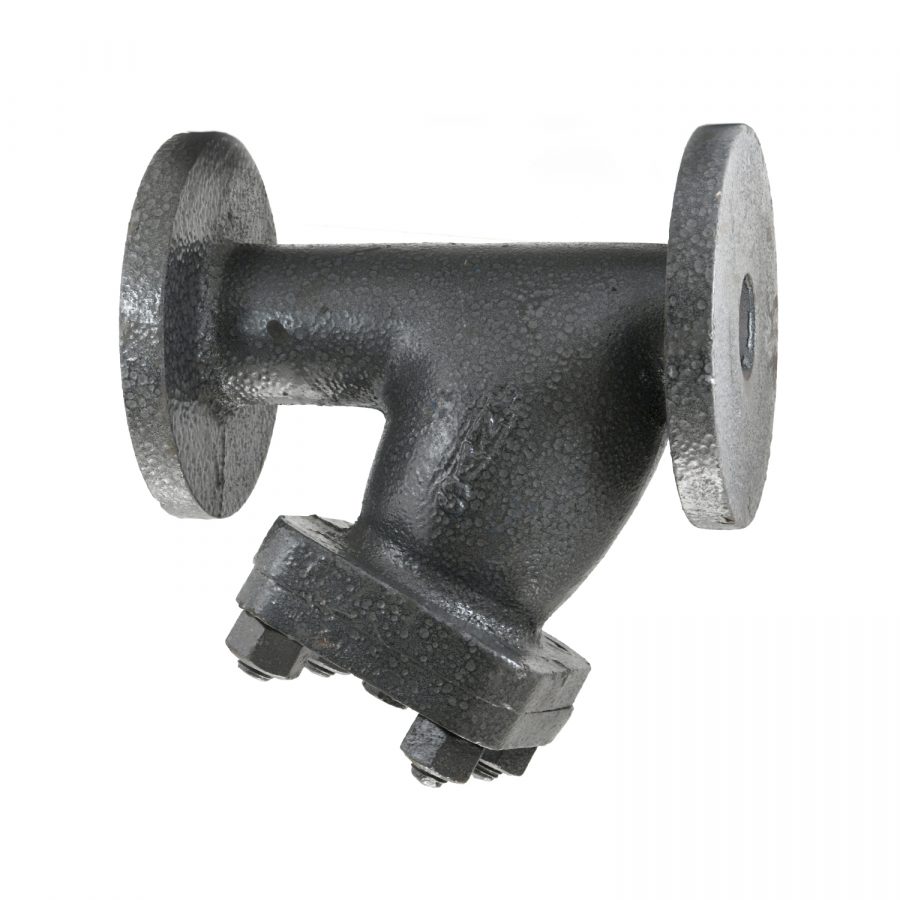

CI-7A Cast Iron Y-Type Strainer

Flanged (IBR Approved)
CI-7A - Cast Iron Y-Type Strainer
  • Application
  • Water
  • Oil
  • Steam

Product Description HSN : 84818030

Product : ‘SANT’ Cast Iron Y-Type Strainer
Type of Pattern : Y-Type
Body Material cum Standard : Cast Iron IBR 86 to 93 Gr.A
Description : Bolted Cover
Trim : SS-304 Screen having 1.2 mm dia perforation
End Details : Flanges as per BS 10 Table F, FF undrilled


Testing & Certification

Test Pressure : 300 Psig.Hyd.
Working Pressure : Max BOP 10.54Kg/cm²g (150 Psig.) at 220° C Steam

Test Certificate in Form lll-C as per IBR is furnished with every supply.

Materials

Components Materials Specifications
Body, Bonnet Cast Iron IBR 86 to 93 Gr.A
Drain Plug for 25mm & above Bronze / SS IBR 282(a)(iv) Gr.B / AISI-410
Strainer S.S. AISI-304
Gasket Compressed Asbestos Fibre IS:2712 Gr.C
Fasteners Mild Steel

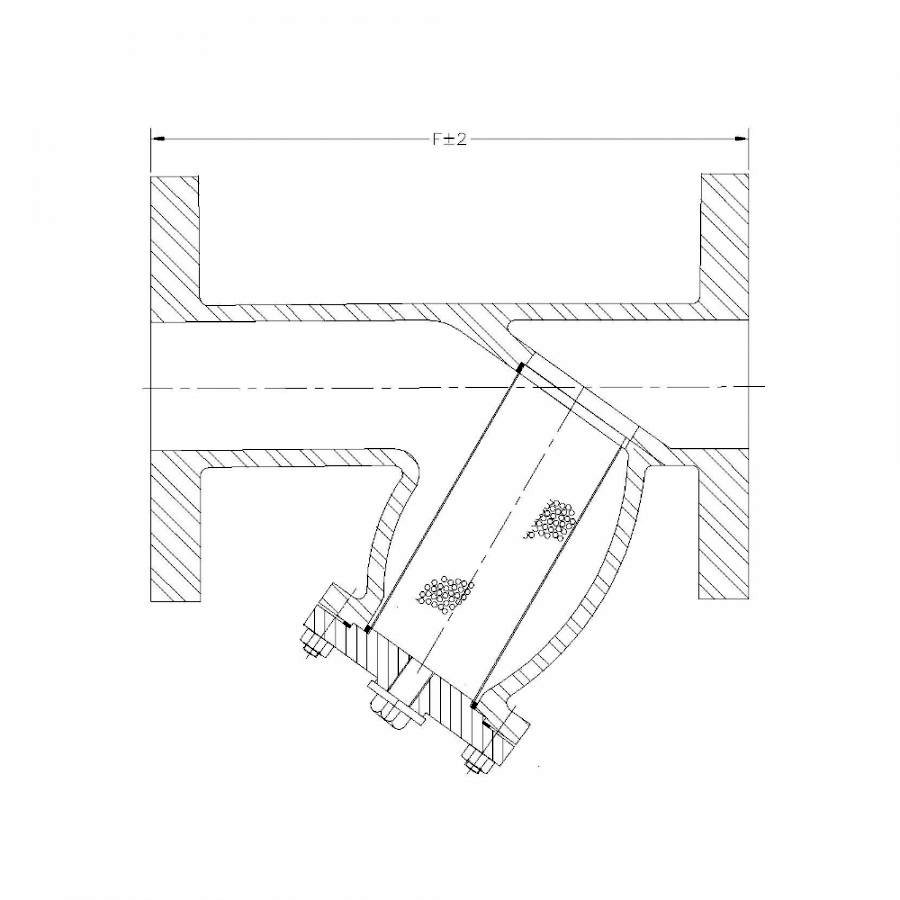

Dimensions (in mm)

Nominal Size Nominal Size (Inches) F
25 1 162±1
40 1.1/2 206±2
50 2 210±2
65 2.1/2 248±2
80 3 270±2
100 4 381±2
125 5 416±2
150 6 451±2
200 8 523±3

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
