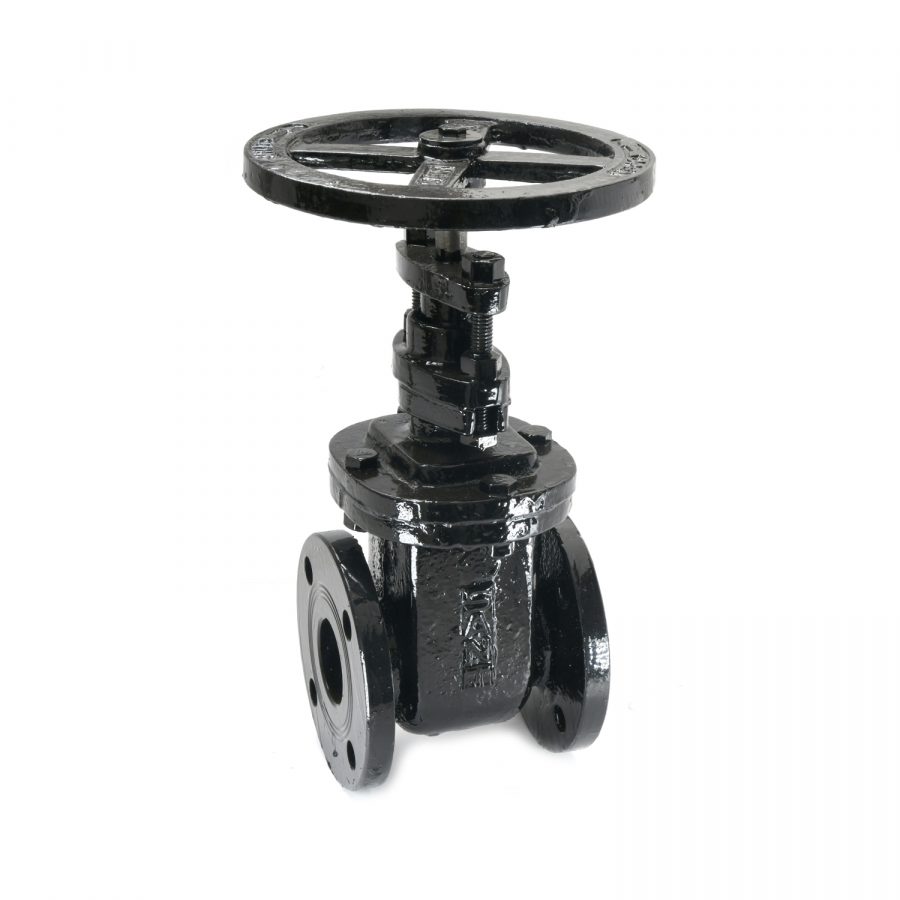

Product : ‘SANT’ Cast Iron Wedge Gate Sluice Valve
Product Standard : Flange Dimensions as per BS 10 Table D
Pressure / Class / Rating : PN 10
Body Material cum Standard : Cast Iron IS:210 Gr.FG200
Description : Bolted Bonnet, Inside Screw & Non Rising Stem
Type of Seat : Renewable seat
Type of Disc : Renewable Solid wedge
Trim : Cu-Alloy Rings, Stem SS AISI-410
Gland Packing : Expanded Pure Flexible Graphite
End Details : Flanges as per BS 10 Table D
Body Test Pressure : 1.5MPa (Hyd.)
Seat Test Pressure : 1.0MPa (Hyd.)
Our Works’ Test Certificate is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Wedge, Handwheel, Gland, Stuffing Box, Bonnet, Gland | Cast Iron | IS:210 Gr.FG200 |
| Stem | S.S. | AISI-410 |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Body Seat Ring | Gun Metal | IS:318 Gr.LTB2 |
| Gasket | Compressed Asbestos Fibre (Rubber) | — |
| Screw, Wedge Ring, Bolt & Nut for Gland, Wedge Nut | Carbon Steel | IS:1367 |

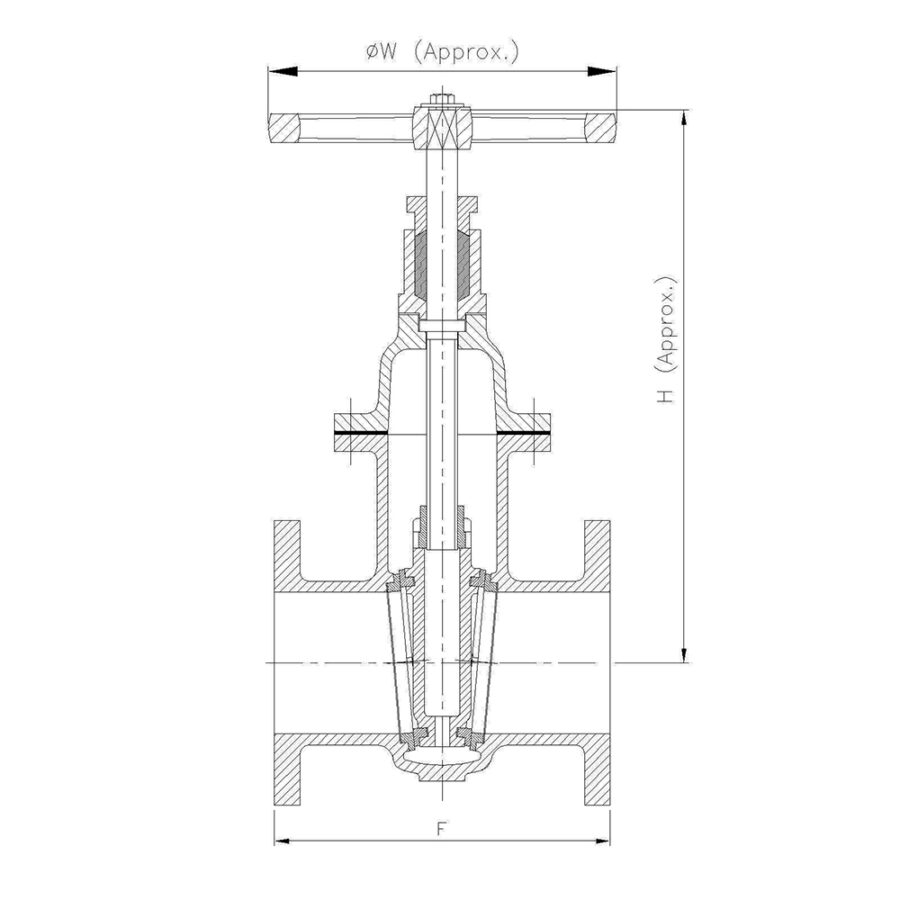

| Nominal Size | Nominal Size (Inches) | F | H (Approx.) | ∅W (Approx.) |
|---|---|---|---|---|
| 50 | 2 | 146±2 | 310 | 225 |
| 65 | 2.1/2 | 165±2 | 340 | 225 |
| 80 | 3 | 172±2 | 360 | 225 |
| 100 | 4 | 184±2 | 395 | 225 |
| 150 | 6 | 203±2 | 520 | 320 |
| 200 | 8 | 230±2 | 590 | 320 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
