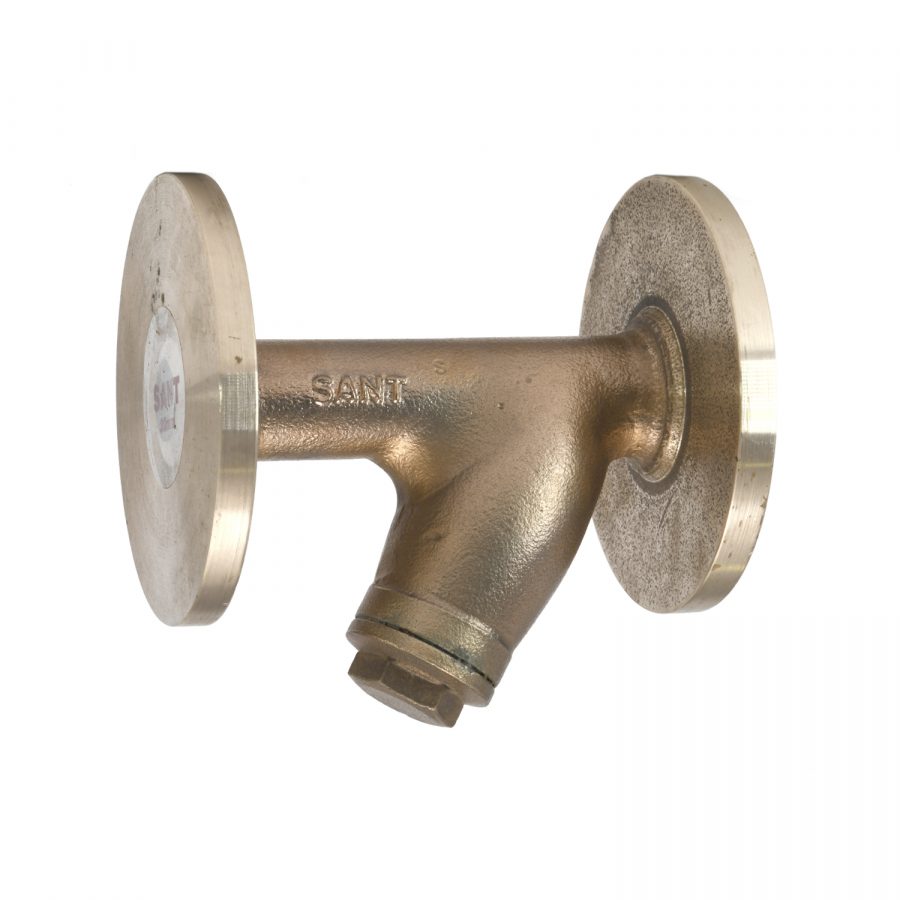

Product : ‘SANT’ Bronze Y-Type Strainer
Type of Pattern : Y Type
Body Material cum Standard : Bronze IBR 282(a)(iv) Gr.B
Description : Y-Type Screwed in cover, SS 304 Screen having 0.5mm Dia perforations
End Details : Flanges as per BS 10 Table H F.F. undrilled
Hydraulic Test Pressure : 500 Psig.Hyd.
Working Pressure : Max.BOP 250 Psig.(17.58Kg/cm²)
Maximum Working Temperature : 435°F (225°C)
Test Certificate in Form lll-C as per IBR is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet | Bronze | IBR 282(a)(iv) Gr.B |
| Gasket | Compressed Asbestos Fiber | IS:2712 Gr.C |
| Strainer | Stainless Steel | AISI304 |

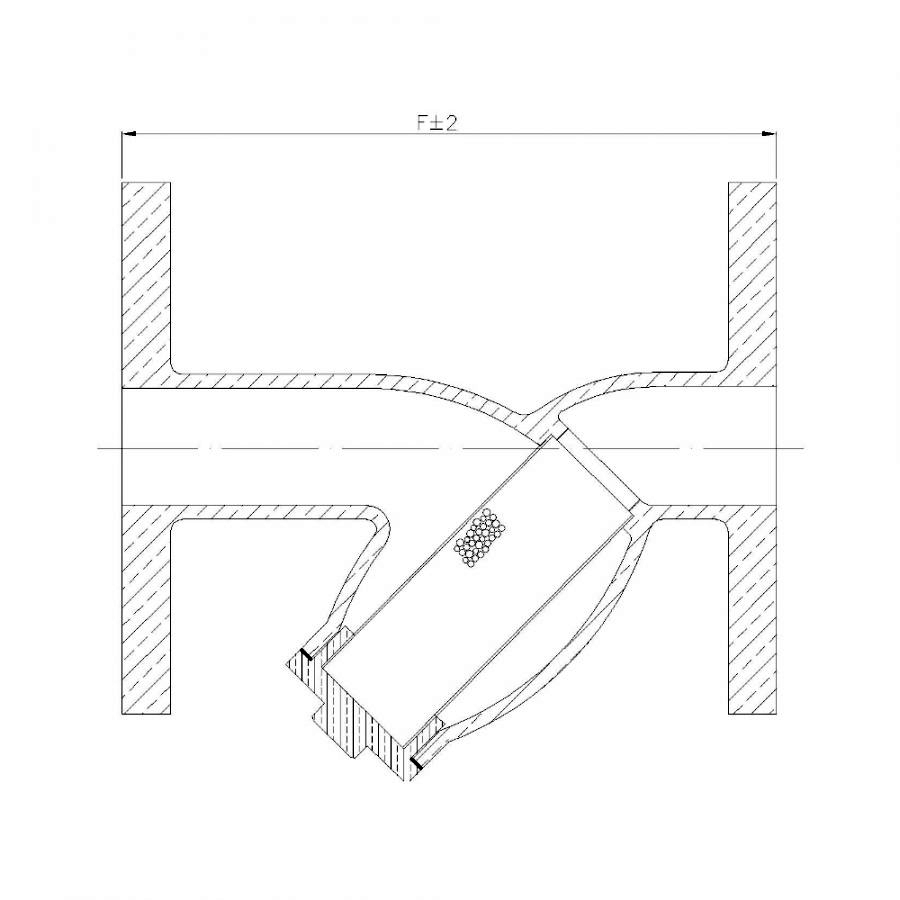

| Nominal Size | Nominal Size (Inches) | F |
|---|---|---|
| 15 | 1/2 | 114 |
| 20 | 3/4 | 140 |
| 25 | 1 | 162 |
| 32 | 1.1/4 | 178 |
| 40 | 1.1/2 | 203 |
| 50 | 2 | 203 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
