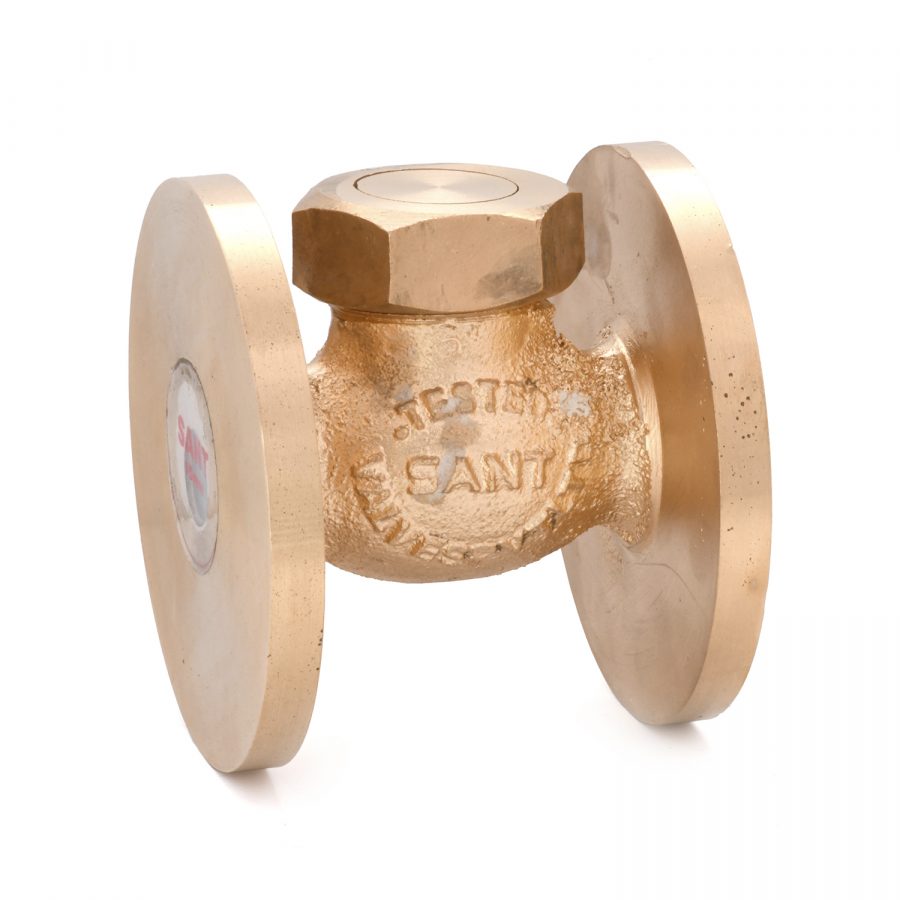

SBM-17 Bronze Union Bonnet Horizontal Lift Check Valve

Union Cover, Flanged
SBM-17 - Bronze Union Bonnet Horizontal Lift Check Valve
  • Application
  • Water
  • Oil
  • Steam

Product Description HSN : 84813000

Product : ‘SBM’ Bronze Union Bonnet Horizontal Lift Check Valve
Product Standard : Conforming to IS:778 Class 2
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed on cover
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Trim : SS AISI410
End Details : Flanges as per BS 10 Table F Undrilled


Testing & Certification

Body Test Pressure : 42Kg/cm²g Hyd. (600Psig. Hyd.)
Seat Test Pressure : 25Kg/cm²g Hyd.  (355Psig. Hyd.)

Our Works’ Test Certificate is furnished with every supply.

Materials

Components Materials Specifications
Body, Bonnet, Union Nut Leaded Tin Bronze IS:318 Gr.LTB2
Body Seat Ring, Valve Disc Stainless Steel AISI410

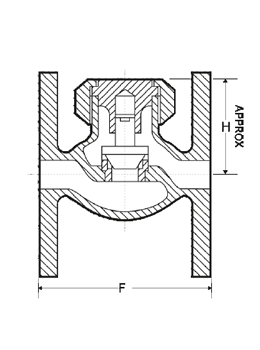

Dimensions (in mm)

Nominal Size Nominal Size (Inches) F H
15 1/2 80 45
20 3/4 95 51
25 1 115 60
32 1.1/4 130 70
40 1.1/2 145 80
50 2 170 100
65 2.1/2 205 100
80 3 225 120
100 4 280 145

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
