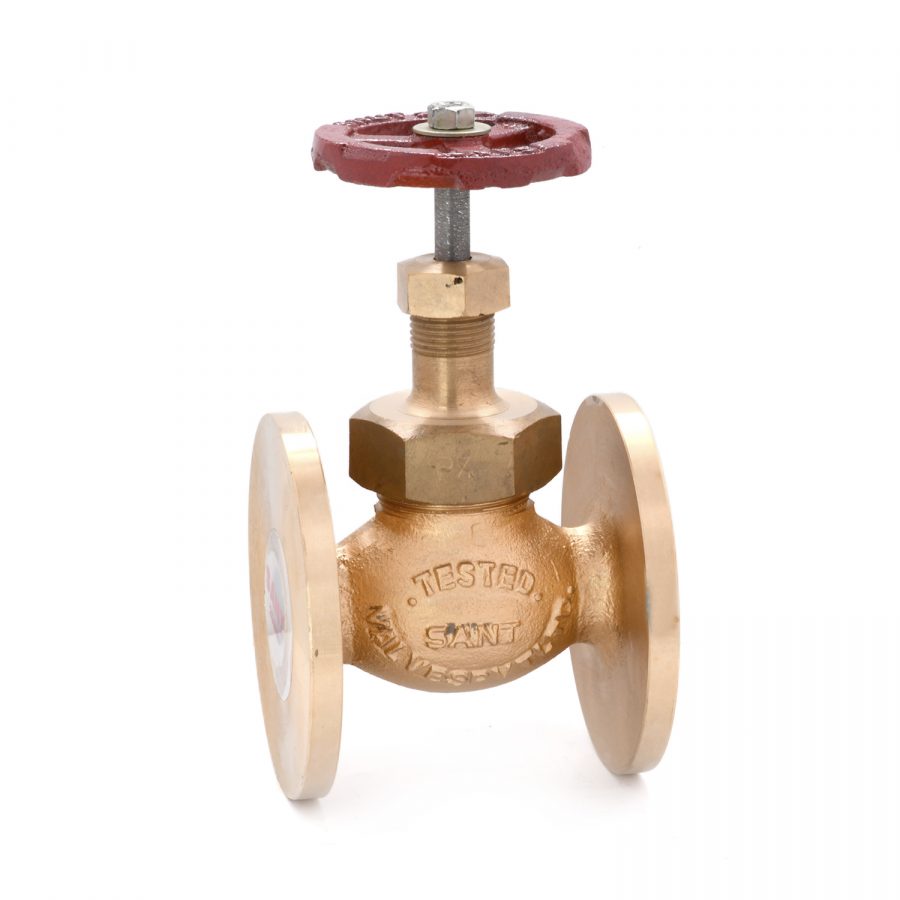

Product : ‘SBM’ Bronze Union Bonnet Globe Valve
Product Standard : Conforming to IS:778 Class 2
Pressure/Class/Rating : PN 25
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed on Bonnet, Inside Screw, Rising Stem
Type of Seat : Renewable seat
Type of Disc : Renewable disc
Trim : SS AISI410
Gland Packing : Expanded Pure Flexible Graphite
End Details : Flanges as per BS 10 Table F F.F. Undrilled
Body Test Pressure : 42Kg/cm²g Hyd. (600Psig. Hyd.)
Seat Test Pressure : 25Kg/cm²g Hyd. (355Psig. Hyd.)
Our Works’ Test Certificate is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Bonnet, Union Nut, Gland, Gland Nut & Check Nut | Leaded Tin Bronze | IS:318 Gr.LTB2 |
| Body Seat Ring, Valve Disc & Spindle | Stainless Steel | AISI410 |
| Handwheel | Cast Iron | IS:210 Gr.FG200 |
| Gland Packing | Expanded Pure Flexible Graphite | — |
| Nut & Washer for Handwheel | Mild Steel | — |
| Nominal Size | Nominal Size (Inches) | F | H | W |
|---|---|---|---|---|
| 15 | 1/2 | 80 | 120 | 70 |
| 20 | 3/4 | 95 | 130 | 70 |
| 25 | 1 | 115 | 145 | 90 |
| 32 | 1.1/4 | 130 | 180 | 90 |
| 40 | 1.1/2 | 145 | 185 | 125 |
| 50 | 2 | 170 | 210 | 145 |
| 65 | 2.1/2 | 205 | 250 | 145 |
| 80 | 3 | 225 | 290 | 170 |
| 100 | 4 | 280 | 330 | 200 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
