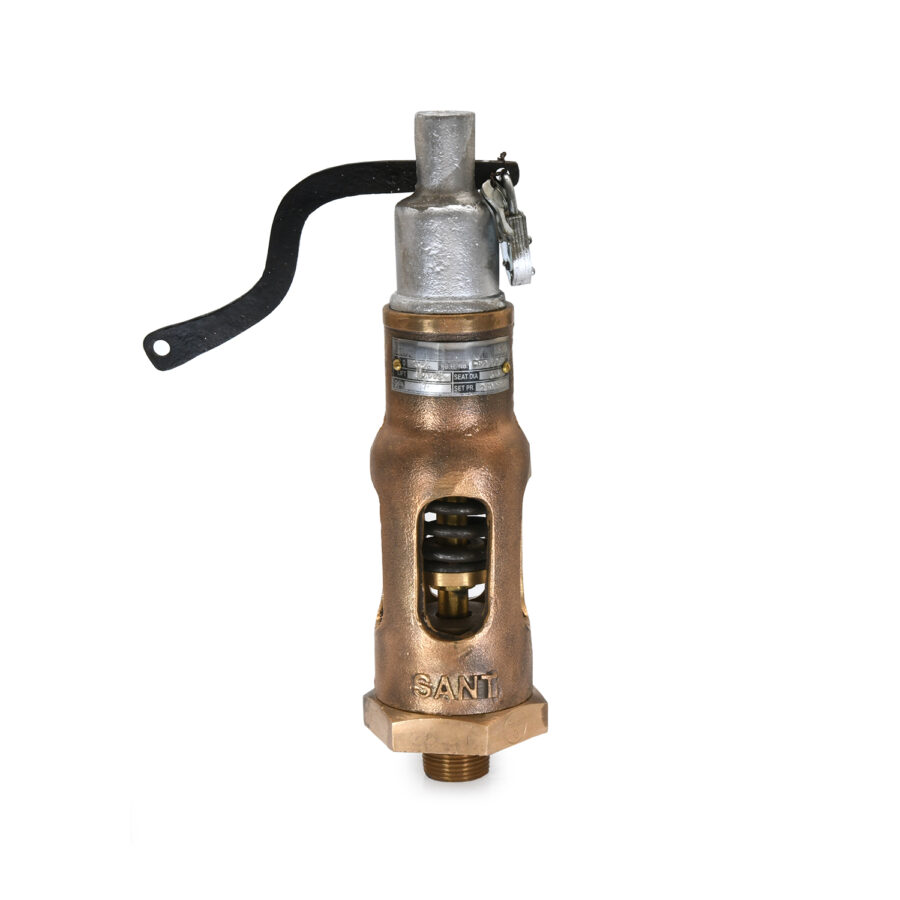

IBR-5 Bronze Pop-Type Safety Valve

Screwed, Open Discharge (IBR Approved)
IBR-5 - Bronze Pop-Type Safety Valve
  • Application
  • Gas
  • Steam

Product Description HSN : 84814000

Product : ‘SANT’ Bronze Safety Valve
Body Material cum Standard : Bronze IBR 282(a)(iv) Gr.B
Description : Pop-Type open discharge
Type of Seat : Integral
Type of Disc : Renewable Disc
Trim : Cu-Alloy
End Details : Inlet screwed male BSP Taper threads to BS 21


Testing & Certification

Body Test Pressure : 500 Psig.Hyd.
Working Pressure : Max.BOP 250 Psig.(17.58Kg/cm²)
Maximum Working Temperature: 225°C (435°F)
Note : Please advice set pressure while placing order

Test Certificate in Form lll-C as per IBR is furnished with every supply.

Materials

Components Materials Specifications
Body, Spring Chamber, Valve Disc, Blow-down Ring, Spring Discs & Adjusting Screw Bronze IBR 282(a)(iv) Gr.B
Spindle, Check Nuts & Screws Forged Brass IS:6912 FLB
Spring Spring Steel IBR 307 to 314
Cap Aluminium Casting
Easing Lever Mild Steel

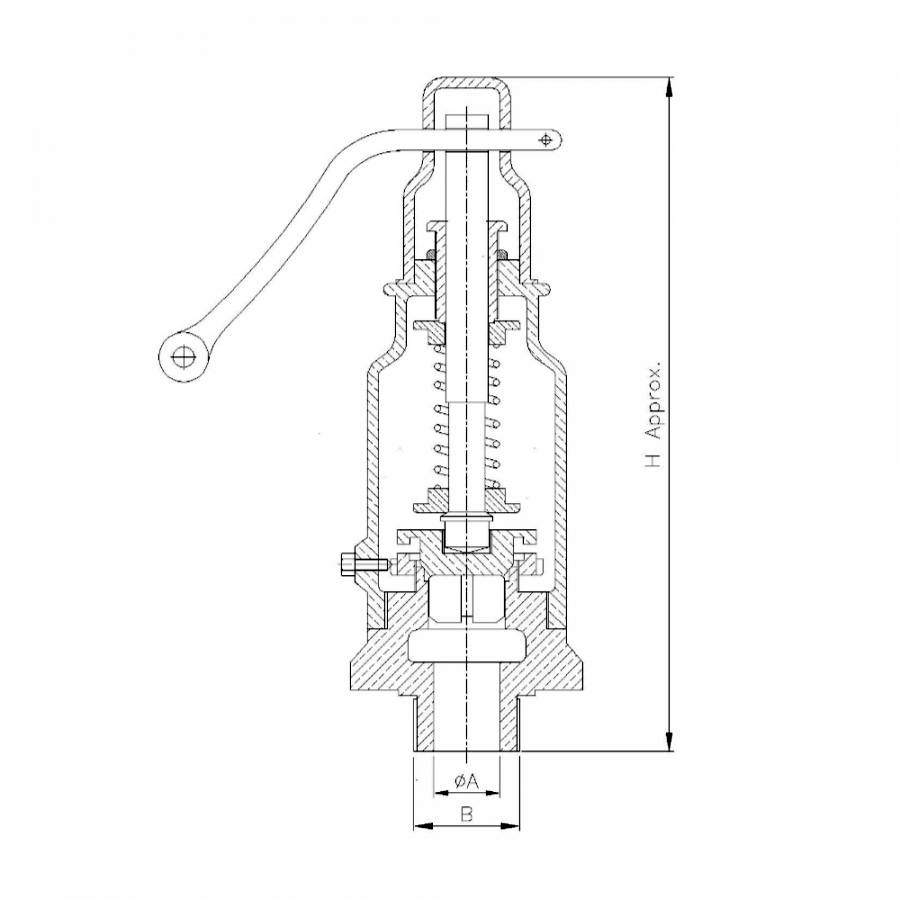

Dimensions (in mm)

Nominal Size Nominal Size (Inches) ∅A (Inches) B (Inches) H (Approx.)
15 1/2 1/2 3/4 290
20 3/4 3/4 1 325
25 1 1 1.1/4 325
40 1.1/2 1.1/2 2 420
50 2 2 2.1/2 460
BSP (T)

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
