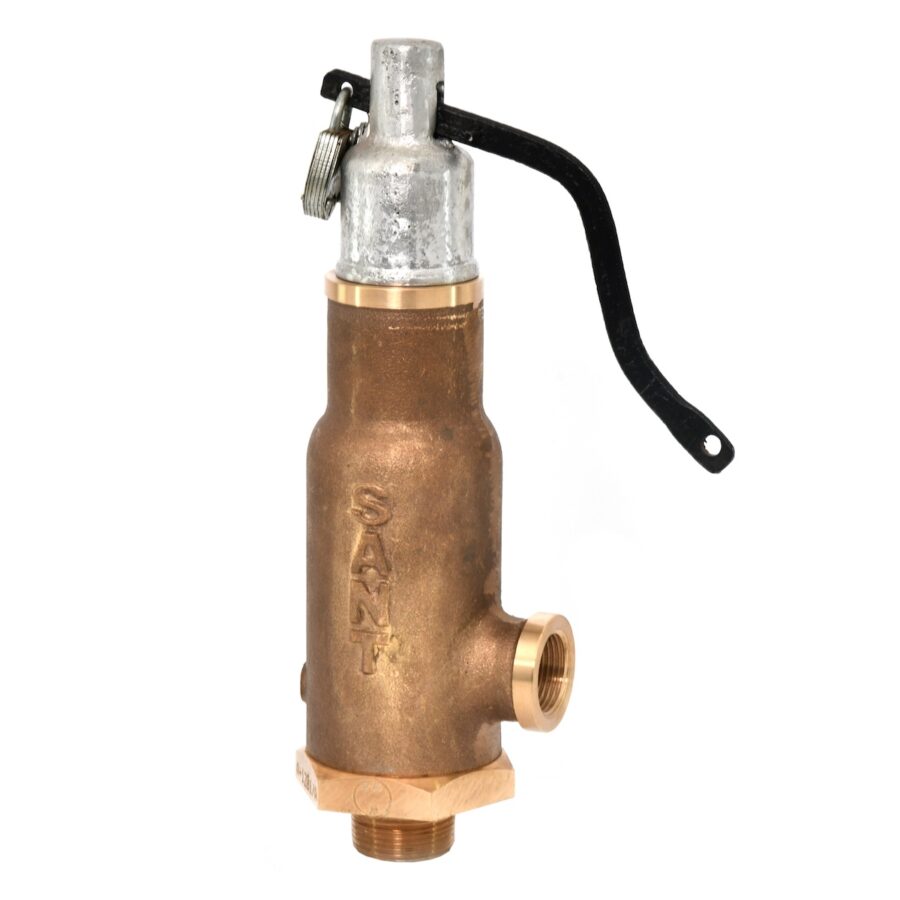

IBR-6 Bronze Pop-Type Safety Valve

Screwed, Enclosed Discharge (IBR Approved)
IBR-6 - Bronze Pop-Type Safety Valve
  • Application
  • Gas
  • Steam

Product Description HSN : 84814000

Product : ‘SANT’ Bronze Safety Valve
Type of Pattern : Right Angle Pattern
Body Material cum Standard : Bronze IBR 282(a)(iv) Gr.B
Description : Pop-Type enclosed discharge
Type of Seat : Integral
Type of Disc : Renewable Disc
Trim : Cu-Alloy
End Details : Inlet screwed male BSP Taper threads to BS 21 Outlet screwed female BSP Parallel threads to BS 21.


Testing & Certification

Body Test Pressure : 500 Psig.Hyd.
Working Pressure : Max.BOP 250 Psig.(17.58Kg/cm²)
Maximum Working Temperature: 225°C (435°F)
Note : Please advice set pressure while placing order

Test Certificate in Form lll-C as per IBR is furnished with every supply.

Materials

Components Materials Specifications
Body, Spring Chamber, Valve Disc, Blow-down Ring, Spring Discs & Adjusting Screw Bronze IBR 282(a)(iv) Gr.B
Spindle, Check Nuts & Screws Forged Brass IS:6912 FLB
Spring Spring Steel IBR 307 to 314
Cap Aluminium Casting
Easing Lever Mild Steel

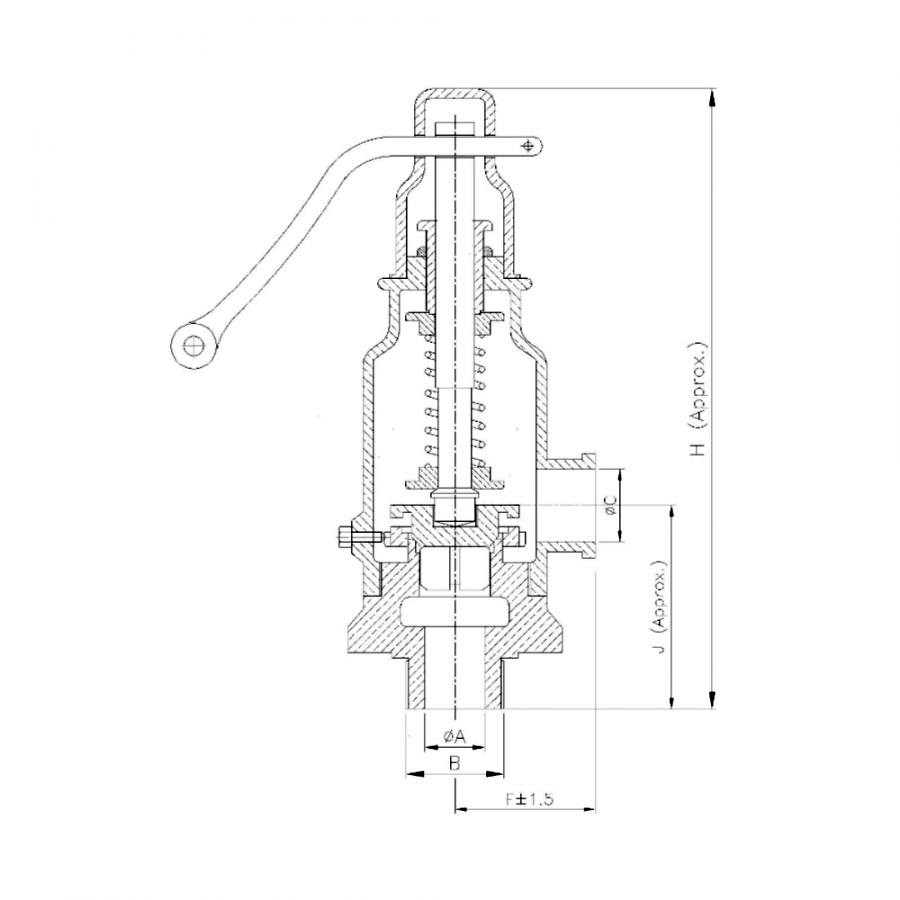

Dimensions (in mm)

Nominal Size Nominal Size (Inches) ∅A (Inches) B (Inches) ∅C (Inches) H (Approx.) J (Approx.) F±1.5
15 1/2 1/2 3/4 1/2 290 73 54
20 3/4 3/4 1 3/4 325 79 64
25 1 1 1.1/4 1 325 79 64
40 1.1/2 1.1/2 2 1.1/2 420 103 68
50 2 2 2.1/2 2 460 113 92
BSP (T) BSP

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
