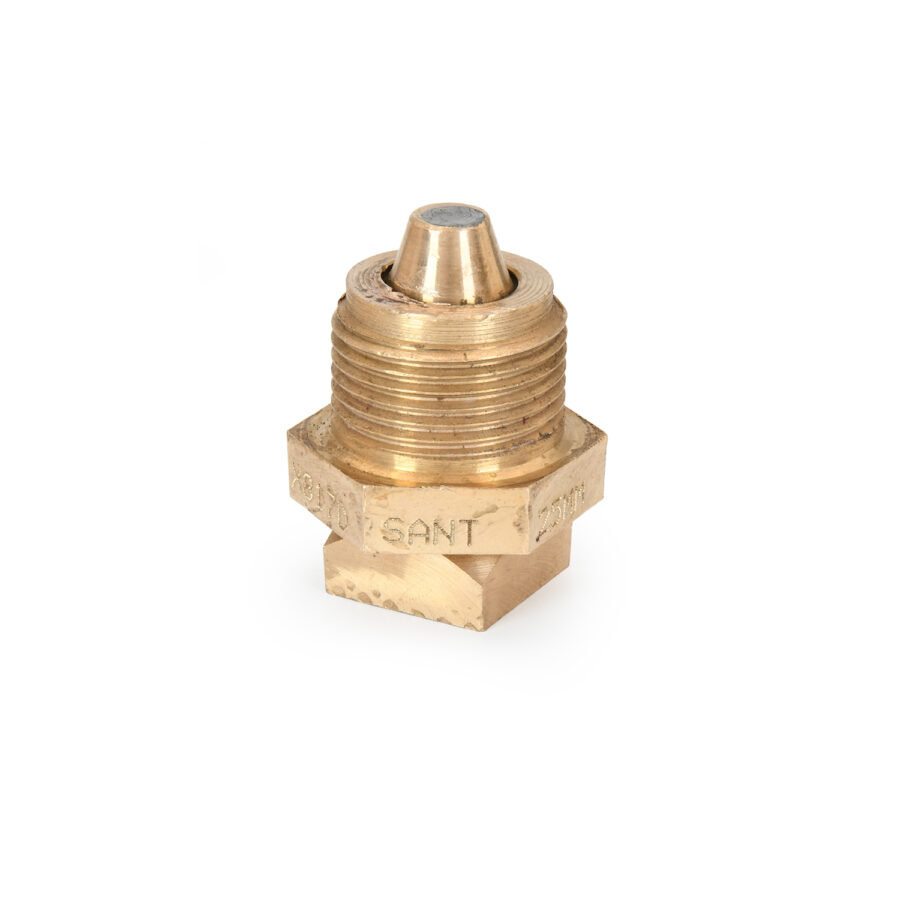

IBR-27 Bronze Loco Type Fusible Plug

Photo Not Available

Product Description HSN : 84814000

Product : Sant Bronze Loco Type Fusible Plug
Body Material cum standard : Bronze IBR Clause 282 (a) IV GrB
Product Description : Loco Type two piece design
End Details : Male BSP Taper Threads to BS-21


Testing & Certification

Test Pressure : Tested to 500Psig. Hyd. (35.15 kg/cm² (Hyd.)
Working Pressure : Max. BOP 250Psig.(17.58kg/cm²)
Maximum Working Temperature : 435°F (225°C)

Materials

Components Materials Specifications
Body, Cone Bronze IBR 282(a)(iv) Gr.B
Fusible Alloy Lead-Tin Alloy

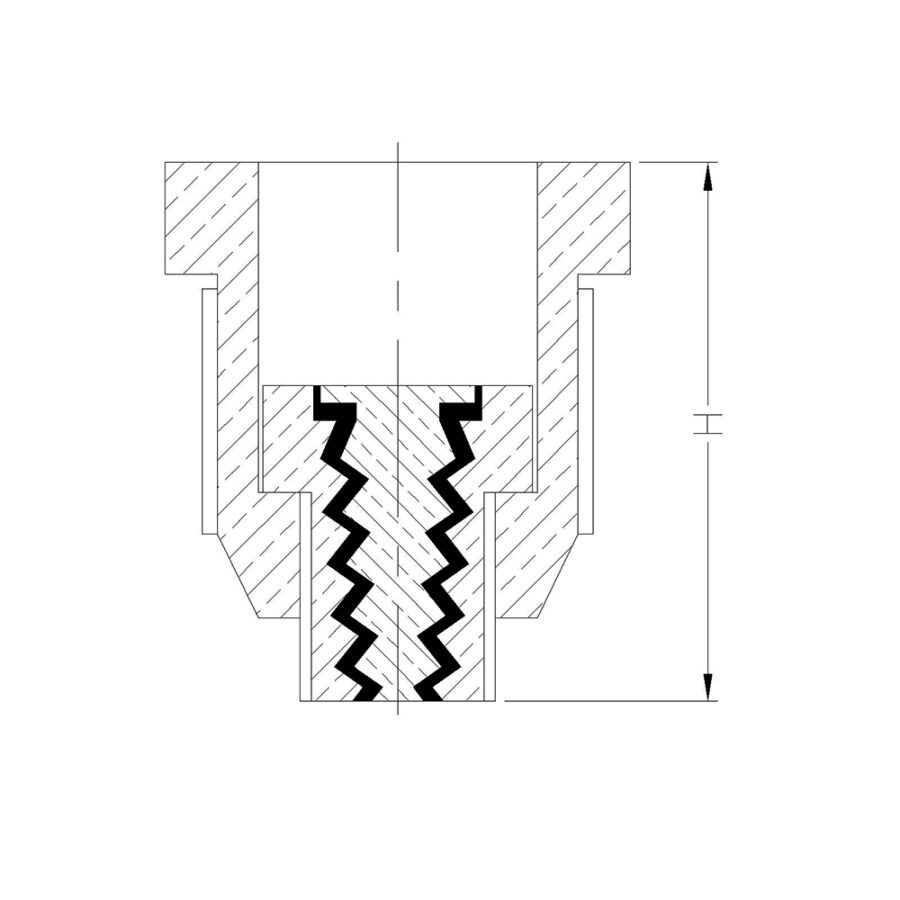

Dimensions (in mm)

Nominal Size Nominal Size (Inches) H (Approx.)
25 1 52
32 1 1/4 52

Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
