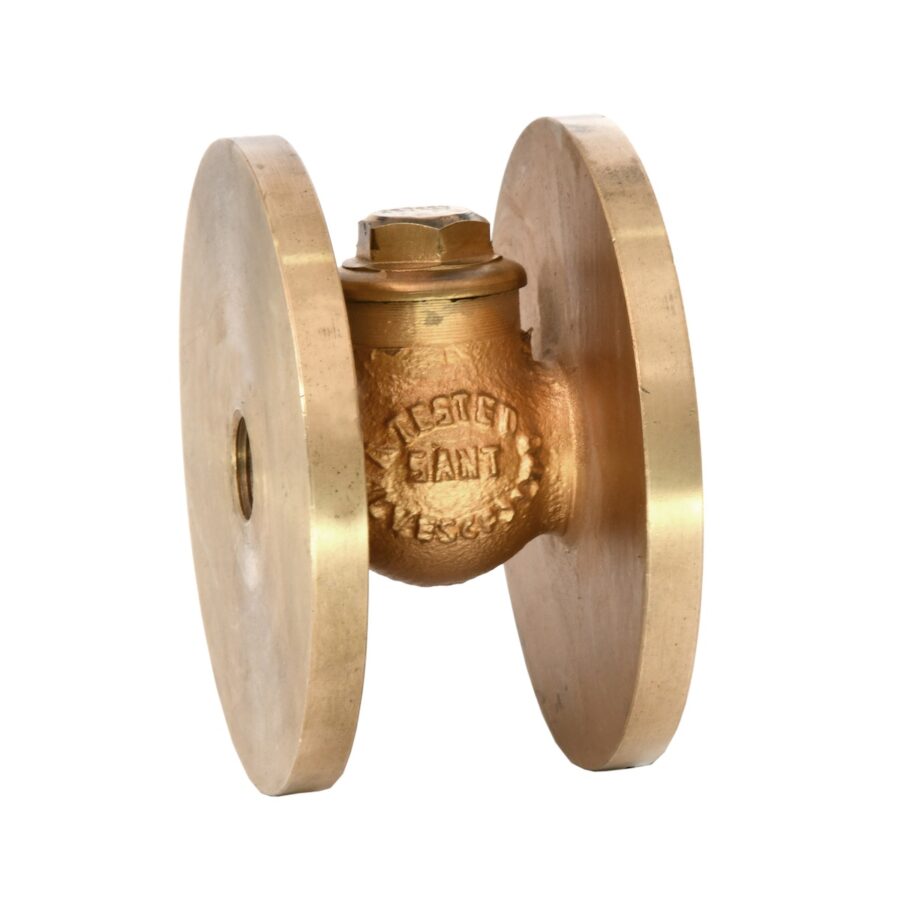

Product : ‘SBM’ Bronze Horizontal Lift Check Valve No.8
Type of Pattern : Standard Pattern
Body Material cum Standard : GM ( IS:318 Gr.LTB2 )
Description : Screwed in Cover
Type of Seat : Integral seat
Type of Disc : Renewable disc
Trim : Cu-Alloy
End Details : Flanges as per BS 10 Table D Undrilled
Body Test Pressure : 21.09Kg/cm²g (300Psig. Hyd.)
Seat Test Pressure : 14.06Kg/cm²g (200Psig. Hyd.)
Our Works’ Test Certificate is furnished with every supply.
| Components | Materials | Specifications |
|---|---|---|
| Body, Cover & Valve Disc | Leaded Tin Bronze | IS:318 Gr.LTB2 |

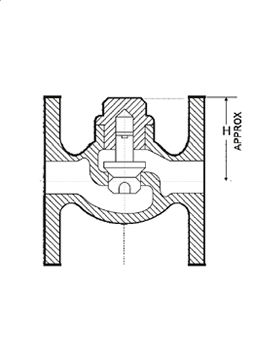

| Nominal Size | Nominal Size (Inches) | F | H |
|---|---|---|---|
| 15 | 1/2 | 53 | 35 |
| 20 | 3/4 | 67 | 40 |
| 25 | 1 | 80 | 50 |
| 32 | 1.1/4 | 85 | 60 |
| 40 | 1.1/2 | 91 | 70 |
| 50 | 2 | 106 | 80 |
| 65 | 2.1/2 | 140 | 85 |
| 80 | 3 | 170 | 100 |
| 100 | 4 | 200 | 125 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
