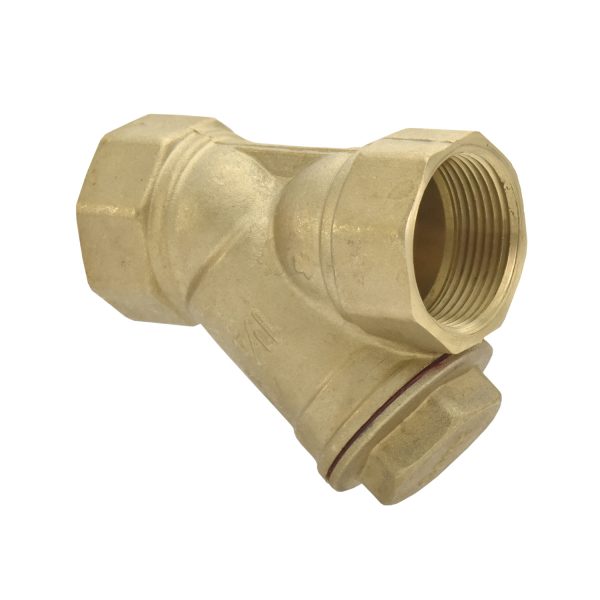

Product : Brass Filter Valve (Y-Type Strainer)
Body Material : Forged Brass
Product Description : Screwed in cover
Material of Filter : Stainless Steel AISI-304
Body Test Pressure : 2.4 MPa (348Psig.) Hyd.
Working Pressure : 1.6 MPa (232 Psig.) Max.
Our Works’ Test Certificate is furnished with every supply.
| Nominal Size | F | H |
|---|---|---|
| 15 | 56 | 39 |
| 20 | 69 | 47 |
| 25 | 77 | 50 |
| 32 | 96 | 65 |
| 40 | 106 | 74 |
| 50 | 127 | 90 |
Notes
1. Product images are for illustration purposes only. Actual product may vary.
2. Actual dimensions may change over time, due to continual design improvements. Please confirm before placing order.
