XGQT3U U-Bolted Mechanical Tee (Threaded)

XGQT3U - U-Bolted Mechanical Tee (Threaded)

Product Description

Product Certification
UL Listed / FM Approved (EX 26523)

Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12

Gaskets
Grade E EPDM with Temperature Range from -34 to +150°C

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16

Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8

Finishing
Epoxy Red Paint RAL – 3000/3001

Branch Outlets
Threaded Branch Outlets as per BSPT ISO 7-1

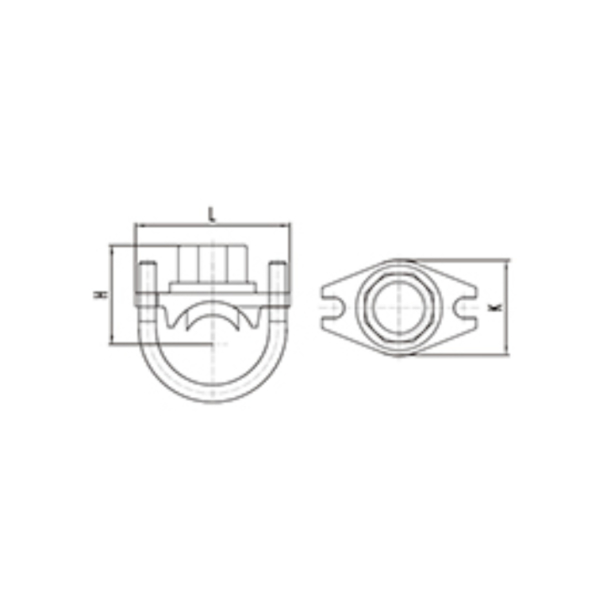

Dimensions (in mm)

Nominal Size Nominal Size (Inch) Pipe O.D. Bolt Size (No. – Size) H L K Hole cuting dimensions (+1.6,0)
25×15 1×1/2 33.7×21.3 M8x25 43.5 74 44 26
25×20 1×3/4 33.7×26.9 M8x25 47.5 74 44 26
32×15 1.1/4×1/2 42.4×21.3 M10x28.5 47 90 56 30
32×20 1.1/4×3/4 42.4×26.9 M10x28.5 51 90 56 30
32×25 1.1/4×1 42.4×33.7 M10x28.5 56 90 56 30
40×15 1.1/2×1/2 48.3×21.3 M10x28.5 49 90 56 30
40×20 1.1/2×3/4 48.3×26.9 M10x28.5 53 90 56 30
40×25 1.1/2×1 48.3×33.7 M10x28.5 58 90 56 30
50×15 2×1/2 60.3×21.3 M10x30 56 100 56 30
50×20 2.1/2×1 60.3×33.7 M10x30 60 100 56 30
50×25 2×1 60.3×33.7 M10x30 65 100 56 30
65×15 2.1/2×1/2 76.1×21.3 M10x30 61 110 59 30
65×20 2.1/2×3/4 76.1×26.9 M10x30 67 110 59 30
65×25 2.1/2×1 76.1×33.7 M10x30 74 110 59 30
