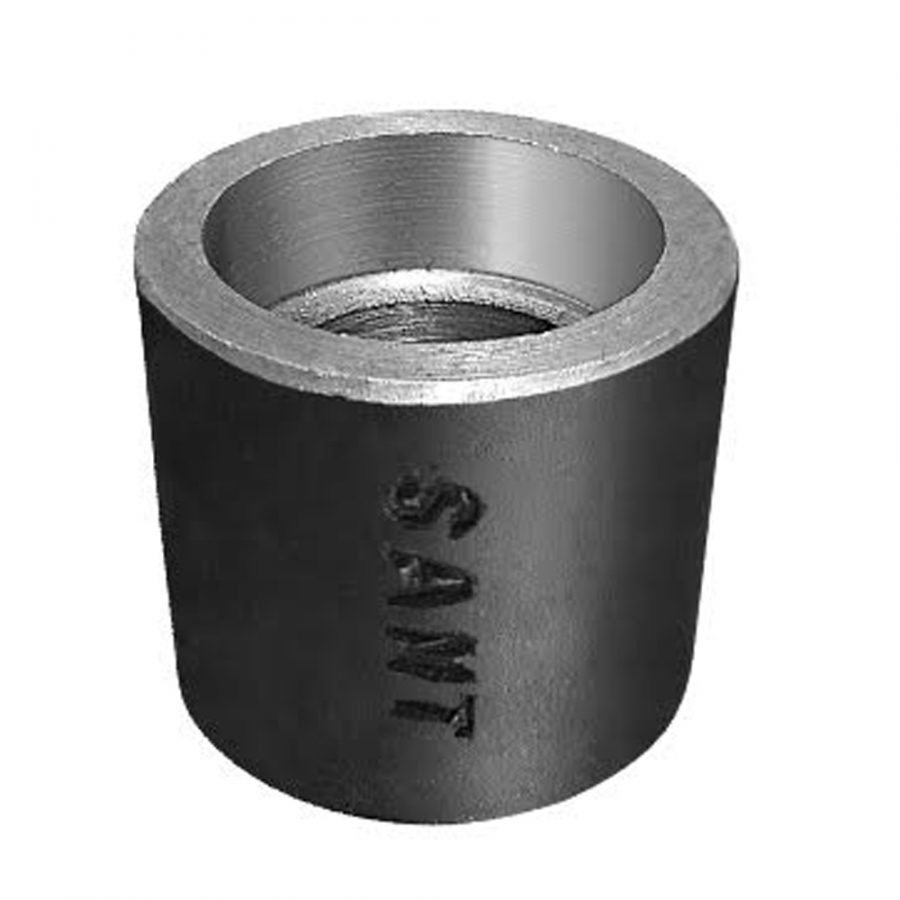

Socket Weld Socket

Socket Weld Socket

Product Description

Product Standard
As per IS:4712: 1984 Socket Welding Ends; Class 20

Chemical Composition
Carbon : 0.30% (max.)
Manganese : 0.60-1.05%
Phosphorus : 0.04% (max.)
Sulphur : 0.05% (max)
Silicon : 0.35% (max.)

End Connections
Socket Welding Ends conform to ANSI B16.11
The threads and socket welding ends are properly checked with duly calibrated gauges.

Test Pressure
IS:4712: 1984-1992 – Pipe Fittings are tested to 3000 psig. (Hyd.)


Dimensions (in mm)

Nominal Pipe Size B (Min) B (Max) C (Avg) C (Max) D (Min) D (Max) E (Min) E (Max) G (Min) J (Max)
8 14.1 14.4 3.80 3.30 8.50 10.00 5 8 3.00 10
10 17.5 17.8 4.00 3.50 11.80 13.30 5 9 3.20 10
15 21.7 22.0 4.65 4.10 15.00 16.60 6 13 3.75 10
20 27.1 27.3 4.90 4.25 20.20 21.70 6 13 3.90 13
25 33.8 34.0 5.70 5.00 25.90 27.40 9 17 4.55 13
32 42.5 42.8 6.05 5.30 34.30 35.80 9 17 4.85 13
40 48.6 48.9 6.35 5.55 40.10 41.70 9 17 5.10 13
50 61.1 61.4 6.95 6.05 51.70 53.50 15 23 5.55 16

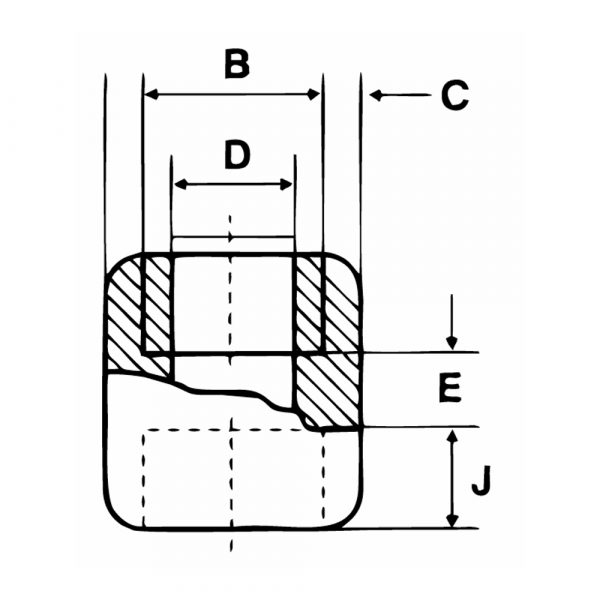

B – Socket Bore Diameter; C – Wall Thickness; D – Bore Diameter; E – Laying Length Couplings; G – Body Wall Thickness; J – Depth of Socket
