XGQT1 Rigid Coupling

XGQT1 - Rigid Coupling

Product Description

Product Certification
UL Listed / FM Approved (EX 26523)

Material of Construction
Ductile Iron as per ASTM A536 Gr. 65 – 45 – 12

Gaskets
Grade E EPDM with Temperature Range from -34 to +150°C

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa
Please note that as per FM 1920:2007 Sizes <= 150 mm are rated PN20 and > 150 mm are rated PN16

Nuts & Bolts
Heat Treated Carbon Steel as per ISO 898-1 Class 8.8

Finishing
Epoxy Red Paint RAL – 3000/3001

Branch Outlets
Threaded Branch Outlets as per BSPT ISO 7-1

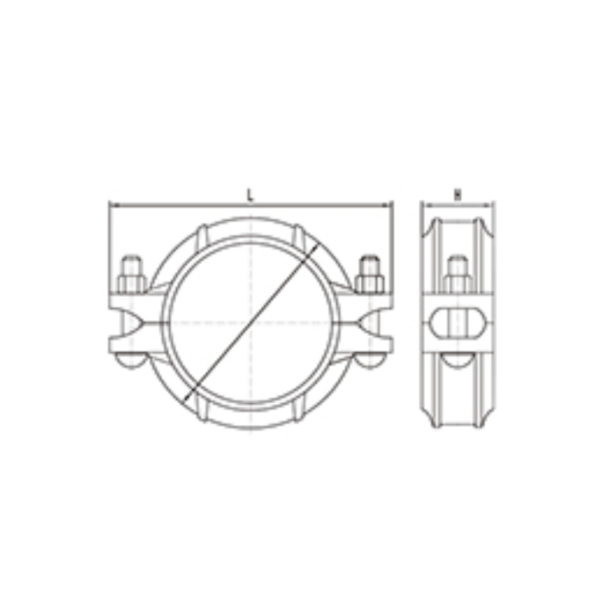

Dimensions (in mm)

Nominal Size Nominal Size (Inch) Pipe O.D. Bolt Size (No. – Size) L H
25 1 33.7 2-M10*45 55.6 98 44
32 1.1/4 42.4 2-M10*45 66 107 44
40 1.1/2 48.3 2-M10*45 74 115 44
50 2 60.3 2-M10*55 88.4 125 46
65 2.1/2 76.1 2-M10*55 102.2 140 46
80 3 88.9 2-M10*60 117.4 154 46
100 4 114.3 2-M12*70 146.6 190 48
125 5 139.7 2-M12*75 171.2 220 48
150 6 165.1 2-M12*75 196.2 244 48
200 8 219.1 2-M16*85 256.4 326 58
250 10 273.0 2-M20*100 316 426 64
300 12 323.9 2-M20*120 380 470 65
