220 Coupling

220 - Coupling

Product Description

Product Certification
UL Listed / FM Approved (EX 6624)

Material
ASTM A536

Threads
ASME B1.20.1

Pressure Rating
Test Pressure : 12.5 MPa
Max. Working Pressure : 2.5 MPa

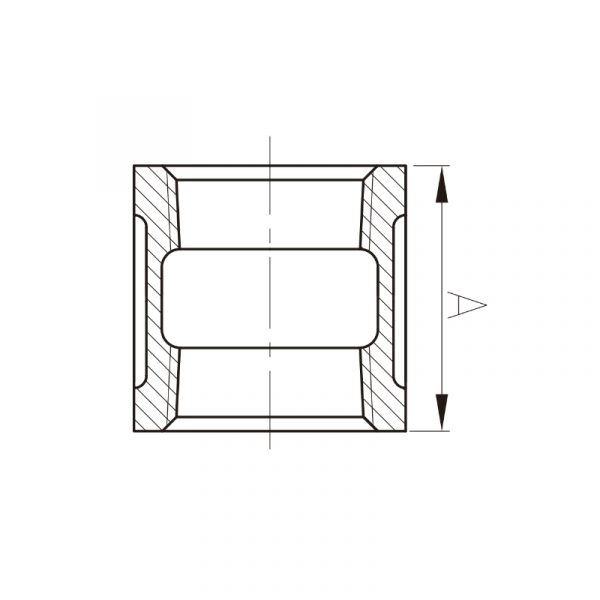

Dimensions (in mm)

Inch mm A
1/2 15 34
3/4 20 38.6
1 25 42.4
1.1/4 32 49
1.1/2 40 54.6
2 50 64.3
